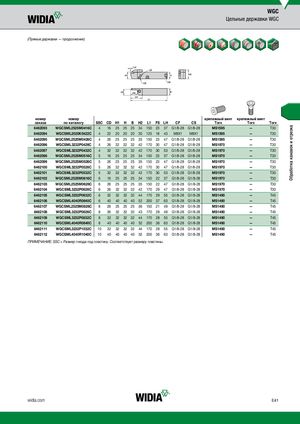

Каталог Widia токарный инструмент 2020 - страница 315

Обработка канавок и отрезка WGC Цельные державки WGC (Прямые державки — продолжение) номер номер крепежный винт крепежный винт заказа по каталогу SSC CD H1 H B H2 L1 FS LH CF CS Torx Torx Torx 6462093 WGCSML2525M0416C 4 16 25 25 25 34 150 23 37 G1/8-28 G1/8-28 MS1595 — T30 6462094 WGCSML2020K0422C 4 22 20 20 20 30 125 18 43 M8X1 M8X1 MS1595 — T30 6462095 WGCSML2525M0426C 4 26 25 25 25 35 150 23 47 G1/8-28 G1/8-28 MS1595 — T30 6462096 WGCSML3232P0426C 4 26 32 32 32 42 170 30 47 G1/8-28 G1/8-28 MS1970 — T30 6462097 WGCSML3232P0432C 4 32 32 32 32 42 170 30 53 G1/8-28 G1/8-28 MS1970 — T30 6462098 WGCSML2525M0516C 5 16 25 25 25 34 150 23 37 G1/8-28 G1/8-28 MS1970 — T30 6462099 WGCSML2525M0526C 5 26 25 25 25 35 150 23 47 G1/8-28 G1/8-28 MS1970 — T30 6462100 WGCSML3232P0526C 5 26 32 32 32 42 170 30 47 G1/8-28 G1/8-28 MS1970 — T30 6462101 WGCSML3232P0532C 5 32 32 32 32 42 170 30 53 G1/8-28 G1/8-28 MS1970 — T30 6462102 WGCSML2525M0616C 6 16 25 25 25 34 150 22 37 G1/8-28 G1/8-28 MS1970 — T30 6462103 WGCSML2525M0626C 6 26 25 25 25 35 150 22 47 G1/8-28 G1/8-28 MS1970 — T30 6462104 WGCSML3232P0626C 6 26 32 32 32 42 170 29 47 G1/8-28 G1/8-28 MS1970 — T30 6462105 WGCSML3232P0632C 6 32 32 32 32 44 170 29 55 G1/8-28 G1/8-28 MS1490 — T45 6462106 WGCSML4040R0640C 6 40 40 40 40 52 200 37 63 G1/8-28 G1/8-28 MS1490 — T45 6462107 WGCSML2525M0826C 8 26 25 25 25 36 150 21 49 G1/8-28 G1/8-28 MS1490 — T45 6462108 WGCSML3232P0826C 8 26 32 32 32 43 170 28 49 G1/8-28 G1/8-28 MS1490 — T45 6462109 WGCSML3232P0832C 8 32 32 32 32 44 170 28 55 G1/8-28 G1/8-28 MS1490 — T45 6462110 WGCSML4040R0840C 8 40 40 40 40 52 200 36 63 G1/8-28 G1/8-28 MS1490 — T45 6462111 WGCSML3232P1032C 10 32 32 32 32 44 170 28 55 G1/8-28 G1/8-28 MS1490 — T45 6462112 WGCSML4040R1040C 10 40 40 40 40 52 200 36 63 G1/8-28 G1/8-28 MS1490 — T45 ПРИМЕЧАНИЕ: SSC = Размер гнезда под пластину. Соответствует размеру пластины. widia.com E41
