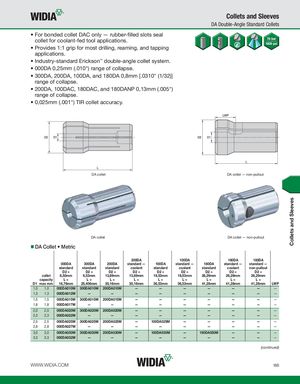

Collets and Sleeves DA Double-Angle Standard Collets • For bonded collet DAC only — rubber-filled slots seal collet for coolant-fed tool applications. • Provides 1:1 grip for most drilling, reaming, and tapping applications. • Industry-standard Erickson™ double-angle collet system. • 000DA 0,25mm (.010") range of collapse. • 300DA, 200DA, 100DA, and 180DA 0,8mm [.0310" (1/32)] range of collapse. • 200DA, 100DAC, 180DAC, and 180DANP 0,13mm (.005") range of collapse. • 0,025mm (.001") TIR collet accuracy. DA collet DA collet — non-pullout DA collet DA collet — non-pullout DA Collet • Metric 200DA 100DA 180DA 180DA 000DA 300DA 200DA standard — 100DA standard — 180DA standard — standard — standard standard standard coolant standard coolant standard coolant non-pullout D2 = D2 = D2 = D2 = D2 = D2 = D2 = D2 = D2 = collet 8,50mm 9,53mm 13,69mm 13,69mm 19,53mm 19,53mm 26,29mm 26,29mm 26,29mm capacity L= L= L= L= L= L= L= L= L= D1 max mm 16,76mm 25,406mm 30,16mm 30,16mm 36,53mm 36,53mm 41,28mm 41,28mm 41,28mm LWP 1,0 1,0 000DA010M 300DA010M 200DA010M — — — — — — — 1,3 1,3 000DA012M — — — — — — — — — 1,5 1,5 000DA015M 300DA015M 200DA015M — — — — — — — 1,8 1,8 000DA017M — — — — — — — — — 2,0 2,0 000DA020M 300DA020M 200DA020M — — — — — — — 2,3 2,3 000DA022M — — — — — — — — — 2,5 2,5 000DA025M 300DA025M 200DA025M — 100DA025M — — — — — 2,8 2,8 000DA027M — — — — — — — — — 3,0 3,0 000DA030M 300DA030M 200DA030M — 100DA030M — 180DA030M — — — 3,3 3,3 000DA032M — — — — — — — — — (continued) WWW.WIDIA.COM I65 Collets and Sleeves
