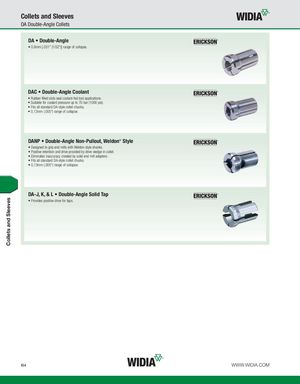

Collets and Sleeves DA Double-Angle Collets DA • Double-Angle • 0,8mm [.031" (1/32")] range of collapse. DAC • Double-Angle Coolant • Rubber-filled slots seal coolant-fed tool applications. • Suitable for coolant pressure up to 70 bar (1000 psi). • Fits all standard DA-style collet chucks. • 0,13mm (.005") range of collapse. DANP • Double-Angle Non-Pullout, Weldon® Style • Designed to grip end mills with Weldon-style shanks. • Positive retention and drive provided by drive wedge in collet. • Eliminates inaccuracy created by solid end mill adapters. • Fits all standard DA-style collet chucks. • 0,13mm (.005") range of collapse. DA-J, K, & L • Double-Angle Solid Tap • Provides positive drive for taps. I64 WWW.WIDIA.COM Collets and Sleeves
