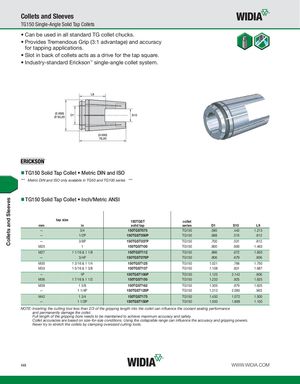

Collets and Sleeves TG150 Single-Angle Solid Tap Collets • Can be used in all standard TG collet chucks. • Provides Tremendous Grip (3:1 advantage) and accuracy for tapping applications. • Slot in back of collets acts as a drive for the tap square. • Industry-standard Erickson™ single-angle collet system. TG150 Solid Tap Collet • Metric DIN and ISO *** Metric DIN and ISO only avalable in TG50 and TG100 series *** TG150 Solid Tap Collet • Inch/Metric ANSI tap size 150TGST collet mm in solid tap series D1 S10 L9 — 3/4 150TGST075 TG150 .590 .442 1.213 — 1/2P 150TGST050P TG150 .688 .515 .812 — 3/8P 150TGST037P TG150 .700 .531 .812 M25 1 150TGST100 TG150 .800 .600 1.463 M27 1 1/16 & 1 1/8 150TGST112 TG150 .896 .672 1.650 — 3/4P 150TGST075P TG150 .906 .679 .906 M30 1 3/16 & 1 1/4 150TGST125 TG150 1.021 .766 1.750 M33 1 5/16 & 1 3/8 150TGST137 TG150 1.108 .831 1.687 — 1P 150TGST100P TG150 1.125 2.142 .906 M36 1 7/16 & 1 1/2 150TGST150 TG150 1.233 .925 1.625 M39 1 5/8 150TGST162 TG150 1.305 .979 1.625 — 1 1/4P 150TGST125P TG150 1.313 2.085 .963 M42 1 3/4 150TGST175 TG150 1.430 1.072 1.500 — 1 1/2P 150TGST150P TG150 1.500 1.898 1.150 NOTE: Inserting the cutting tool less than 2/3 of the gripping length into the collet can influence the coolant sealing performance and permanently damage the collet. Full length of the gripping bore needs to be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools. I48 WWW.WIDIA.COM Collets and Sleeves
