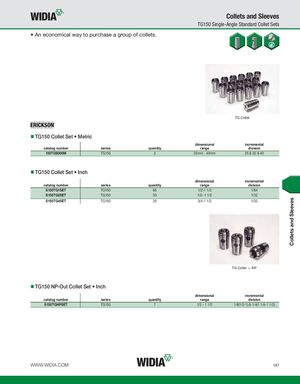

Collets and Sleeves TG150 Single-Angle Standard Collet Sets • An economical way to purchase a group of collets. TG Collet TG150 Collet Set • Metric dimensional incremental catalog number series quantity range division 150TGS000M TG150 3 25mm - 40mm 25 & 32 & 40 TG150 Collet Set • Inch dimensional incremental catalog number series quantity range division S150TG1SET TG150 65 1/2-1 1/2 1/64 S150TG2SET TG150 33 1/2- 1 1/2 1/32 S150TG4SET TG150 25 3/4-1 1/2 1/32 TG Collet — NP TG150 NP-Out Collet Set • Inch dimensional incremental catalog number series quantity range division S150TGNPSET TG150 7 1/2 - 1 1/2 1/8(1/2-1) & 1/4(1 1/4-1 1/2) WWW.WIDIA.COM I47 Collets and Sleeves
