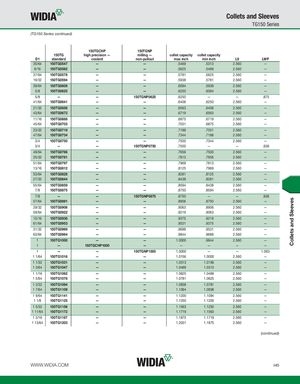

(TG150 Series continued)
| D1 | 150TG standard | 150TGCHP high precision — coolant | 150TGNP milling — non-pullout | collet capacity max inch | collet capacity min inch | L9 | LWP |
| 35/64 | 150TG0547 | — | — | .5469 | .5313 | 2.560 | — |
| 9/16 | 150TG0562 | — | — | .5625 | .5469 | 2.560 | — |
| 37/64 | 150TG0578 | — | — | .5781 | .5625 | 2.560 | — |
| 19/32 | 150TG0594 | — | — | .5938 | .5781 | 2.560 | — |
| 39/64 | 150TG0609 | — | — | .6094 | .5938 | 2.560 | — |
| 5/8 | 150TG0625 | — | — | .6250 | .6094 | 2.560 | — |
| 5/8 | — | — | 150TGNP0625 | .6250 | — | — | .875 |
| 41/64 | 150TG0641 | — | — | .6406 | .6250 | 2.560 | — |
| 21/32 | 150TG0656 | — | — | .6563 | .6406 | 2.560 | — |
| 43/64 | 150TG0672 | — | — | .6719 | .6563 | 2.560 | — |
| 11/16 | 150TG0688 | — | — | .6875 | .6719 | 2.560 | — |
| 45/64 | 150TG0703 | — | — | .7031 | .6875 | 2.560 | — |
| 23/32 | 150TG0719 | — | — | .7188 | .7031 | 2.560 | — |
| 47/64 | 150TG0734 | — | — | .7344 | .7188 | 2.560 | — |
| 3/4 | 150TG0750 | — | — | .7500 | .7344 | 2.560 | — |
| 3/4 | — | — | 150TGNP0750 | .7500 | — | — | .938 |
| 49/64 | 150TG0766 | — | — | .7656 | .7500 | 2.560 | — |
| 25/32 | 150TG0781 | — | — | .7813 | .7656 | 2.560 | — |
| 51/64 | 150TG0797 | — | — | .7969 | .7813 | 2.560 | — |
| 13/16 | 150TG0812 | — | — | .8125 | .7969 | 2.560 | — |
| 53/64 | 150TG0828 | — | — | .8281 | .8125 | 2.560 | — |
| 27/32 | 150TG0844 | — | — | .8438 | .8281 | 2.560 | — |
| 55/64 | 150TG0859 | — | — | .8594 | .8438 | 2.560 | — |
| 7/8 | 150TG0875 | — | — | .8750 | .8594 | 2.560 | — |
| 7/8 | — | — | 150TGNP0875 | .8750 | — | — | .938 |
| 57/64 | 150TG0891 | — | — | .8906 | .8750 | 2.560 | — |
| 29/32 | 150TG0906 | — | — | .9063 | .8906 | 2.560 | — |
| 59/64 | 150TG0922 | — | — | .9219 | .9063 | 2.560 | — |
| 15/16 | 150TG0938 | — | — | .9375 | .9219 | 2.560 | — |
| 61/64 | 150TG0953 | — | — | .9531 | .9375 | 2.560 | — |
| 31/32 | 150TG0969 | — | — | .9688 | .9531 | 2.560 | — |
| 63/64 | 150TG0984 | — | — | .9844 | .9688 | 2.560 | — |
| 1 1 | 150TG1000 — | — 150TGCHP1000 | — — | 1.0000 — | .9844 — | 2.560 — | — — |
| 1 | — | — | 150TGNP1000 | 1.0000 | — | — | 1.063 |
| 1 1/64 | 150TG1016 | — | — | 1.0156 | 1.0000 | 2.560 | — |
| 1 1/32 | 150TG1031 | — | — | 1.0313 | 1.0156 | 2.560 | — |
| 1 3/64 | 150TG1047 | — | — | 1.0469 | 1.0313 | 2.560 | — |
| 1 1/16 | 150TG1062 | — | — | 1.0625 | 1.0469 | 2.560 | — |
| 1 5/64 | 150TG1078 | — | — | 1.0781 | 1.0625 | 2.560 | — |
| 1 3/32 | 150TG1094 | — | — | 1.0938 | 1.0781 | 2.560 | — |
| 1 7/64 | 150TG1109 | — | — | 1.1094 | 1.0938 | 2.560 | — |
| 1 9/64 | 150TG1141 | — | — | 1.1200 | 1.1094 | 2.560 | — |
| 1 1/8 | 150TG1125 | — | — | 1.1250 | 1.1200 | 2.560 | — |
| 1 5/32 | 150TG1156 | — | — | 1.1563 | 1.1250 | 2.560 | — |
| 1 11/64 | 150TG1172 | — | — | 1.1719 | 1.1563 | 2.560 | — |
| 1 3/16 1 13/64 | 150TG1187 150TG1203 | — — | — — | 1.1875 1.2031 | 1.1719 1.1875 | 2.560 2.560 | — — |
(continued)
