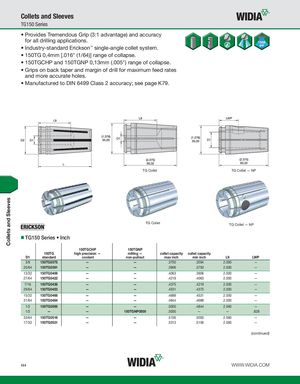

- Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications.
- Industry-standard Erickson™ single-angle collet system.
- 150TG 0,4mm [.016" (1/64)] range of collapse.
- 150TGCHP and 150TGNP 0,13mm (.005") range of collapse.
- Grips on back taper and margin of drill for maximum feed rates and more accurate holes.
- Manufactured to DIN 6499 Class 2 accuracy; see page K79.
TG Collet TG Collet — NP
TG Collet TG Collet — NP
TG150 Series Inch
| D1 | 150TG standard | 150TGCHP high precision — coolant | 150TGNP milling — non-pullout | collet capacity max inch | collet capacity min inch | L9 | LWP |
| 3/8 | 150TG0375 | — | — | .3750 | .3594 | 2.000 | — |
| 25/64 | 150TG0391 | — | — | .3906 | .3750 | 2.000 | — |
| 13/32 | 150TG0406 | — | — | .4063 | .3906 | 2.000 | — |
| 27/64 | 150TG0422 | — | — | .4219 | .4063 | 2.000 | — |
| 7/16 | 150TG0438 | — | — | .4375 | .4219 | 2.000 | — |
| 29/64 | 150TG0453 | — | — | .4531 | .4375 | 2.000 | — |
| 15/32 | 150TG0468 | — | — | .4688 | .4531 | 2.000 | — |
| 31/64 | 150TG0484 | — | — | .4844 | .4688 | 2.000 | — |
| 1/2 | 150TG0500 | — | — | .5000 | .4844 | 2.560 | — |
| 1/2 | — | — | 150TGNP0500 | .5000 | — | — | .828 |
| 33/64 | 150TG0516 | — | — | .5156 | .5000 | 2.560 | — |
| 17/32 | 150TG0531 | — | — | .5313 | .5156 | 2.560 | — |
(continued)
