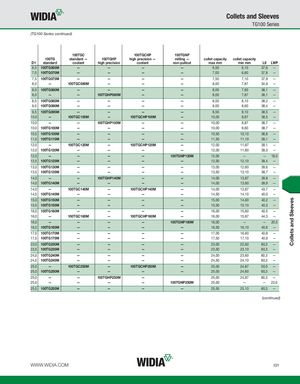

(TG100 Series continued)
| D1 | 100TG standard | 100TGC standard — coolant | 100TGHP high precision | 100TGCHP high precision — coolant | 100TGNP milling — non-pullout | collet capacity max mm | collet capacity min mm | L9 | LWP |
| 6,5 | 100TG065M | — | — | — | — | 6,50 | 6,10 | 37,6 | — |
| 7,0 | 100TG070M | — | — | — | — | 7,00 | 6,60 | 37,8 | — |
| 7,5 | 100TG075M | — | — | — | — | 7,50 | 7,10 | 37,9 | — |
| 8,0 | — | 100TGC080M | — | — | — | 8,00 | 7,87 | 34,9 | — |
| 8,0 | 100TG080M | — | — | — | — | 8,00 | 7,60 | 38,1 | — |
| 8,0 | — | — | 100TGHP080M | — | — | 8,00 | 7,87 | 38,1 | — |
| 8,5 | 100TG085M | — | — | — | — | 8,50 | 8,10 | 38,2 | — |
| 9,0 | 100TG090M | — | — | — | — | 9,00 | 8,60 | 38,4 | — |
| 9,5 | 100TG095M | — | — | — | — | 9,50 | 9,10 | 38,5 | — |
| 10,0 | — | 100TGC100M | — | 100TGCHP100M | — | 10,00 | 9,87 | 38,5 | — |
| 10,0 | — | — | 100TGHP100M | — | — | 10,00 | 9,87 | 38,7 | — |
| 10,0 | 100TG100M | — | — | — | — | 10,00 | 9,60 | 38,7 | — |
| 10,5 | 100TG105M | — | — | — | — | 10,50 | 10,10 | 38,8 | — |
| 11,5 | 100TG115M | — | — | — | — | 11,50 | 11,10 | 39,1 | — |
| 12,0 | — | 100TGC120M | — | 100TGCHP120M | — | 12,00 | 11,87 | 39,1 | — |
| 12,0 | 100TG120M | — | — | — | — | 12,00 | 11,60 | 39,3 | — |
| 12,0 | — | — | — | — | 100TGNP120M | 12,00 | — | — | 18,0 |
| 12,5 | 100TG125M | — | — | — | — | 12,50 | 12,10 | 39,4 | — |
| 13,0 | 100TG130M | — | — | — | — | 13,00 | 12,60 | 39,6 | — |
| 13,5 | 100TG135M | — | — | — | — | 13,50 | 13,10 | 39,7 | — |
| 14,0 | — | — | 100TGHP140M | — | — | 14,00 | 13,87 | 39,9 | — |
| 14,0 | 100TG140M | — | — | — | — | 14,00 | 13,60 | 39,9 | — |
| 14,0 | — | 100TGC140M | — | 100TGCHP140M | — | 14,00 | 13,87 | 43,7 | — |
| 14,5 | 100TG145M | — | — | — | — | 14,50 | 14,10 | 40,0 | — |
| 15,0 | 100TG150M | — | — | — | — | 15,00 | 14,60 | 40,2 | — |
| 15,5 | 100TG155M | — | — | — | — | 15,50 | 15,10 | 40,3 | — |
| 16,0 | 100TG160M | — | — | — | — | 16,00 | 15,60 | 40,5 | — |
| 16,0 | — | 100TGC160M | — | 100TGCHP160M | — | 16,00 | 15,87 | 44,3 | — |
| 16,0 | — | — | — | — | 100TGNP160M | 16,00 | — | — | 20,5 |
| 16,5 | 100TG165M | — | — | — | — | 16,50 | 16,10 | 40,6 | — |
| 17,0 | 100TG170M | — | — | — | — | 17,00 | 16,60 | 40,8 | — |
| 17,5 | 100TG175M | — | — | — | — | 17,50 | 17,10 | 40,9 | — |
| 23,0 | 100TG230M | — | — | — | — | 23,00 | 22,60 | 60,3 | — |
| 23,5 | 100TG235M | — | — | — | — | 23,50 | 23,10 | 60,3 | — |
| 24,0 | 100TG240M | — | — | — | — | 24,00 | 23,60 | 60,3 | — |
| 24,5 | 100TG245M | — | — | — | — | 24,50 | 24,10 | 60,3 | — |
| 25,0 | — | 100TGC250M | — | 100TGCHP250M | — | 25,00 | 24,87 | 50,0 | — |
| 25,0 | 100TG250M | — | — | — | — | 25,00 | 24,60 | 60,3 | — |
| 25,0 | — | — | 100TGHP250M | — | 25,00 | 24,87 | 60,3 | — | |
| 25,0 | — | — | — | — | 100TGNP250M | 25,00 | — | — | 22,0 |
| 25,5 | 100TG255M | — | — | — | — | 25,50 | 25,10 | 60,3 | — |
(continued)
