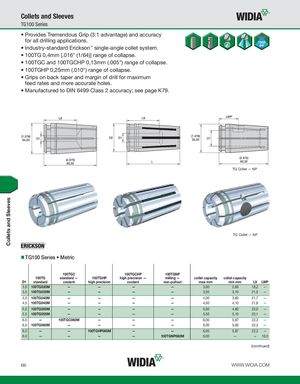

- Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications.
- Industry-standard Erickson™ single-angle collet system.
- 100TG 0,4mm [.016" (1/64)] range of collapse.
- 100TGC and 100TGCHP 0,13mm (.005") range of collapse.
- 100TGHP 0,25mm (.010") range of collapse.
- Grips on back taper and margin of drill for maximum feed rates and more accurate holes.
- Manufactured to DIN 6499 Class 2 accuracy; see page K79.
TG Collet — NP
TG Collet — NP
TG100 Series Metric
| D1 | 100TG standard | 100TGC standard — coolant | 100TGHP high precision | 100TGCHP high precision — coolant | 100TGNP milling — non-pullout | collet capacity max mm | collet capacity min mm | L9 | LWP |
| 3,0 | 100TG030M | — | — | — | — | 3,00 | 2,60 | 18,2 | — |
| 3,5 | 100TG035M | — | — | — | — | 3,50 | 3,10 | 21,5 | — |
| 4,0 | 100TG040M | — | — | — | — | 4,00 | 3,60 | 21,7 | — |
| 4,5 | 100TG045M | — | — | — | — | 4,50 | 4,10 | 21,8 | — |
| 5,0 | 100TG050M | — | — | — | — | 5,00 | 4,60 | 22,0 | — |
| 5,5 | 100TG055M | — | — | — | — | 5,50 | 5,10 | 22,1 | — |
| 6,0 | — | 100TGC060M | — | — | — | 6,00 | 5,87 | 22,3 | — |
| 6,0 | 100TG060M | — | — | — | — | 6,00 | 5,60 | 22,3 | — |
| 6,0 | — | — | 100TGHP060M | — | — | 6,00 | 5,87 | 22,3 | — |
| 6,0 | — | — | — | — | 100TGNP060M | 6,00 | — | — | 16,0 |
(continued)
