WID_TOOLINGSYSTEMS10_I024_I025.qxp:WIDIA 10:37 AM Page I25

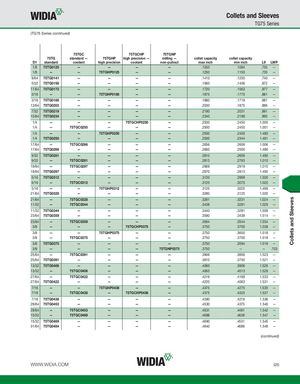

TG75 Series
(TG75 Series continued)
| D1 | 75TG standard | 75TGC standard — coolant | 75TGHP high precision | 75TGCHP high precision — coolant | 75TGNP milling — non-pullout | collet capacity max inch | collet capacity min inch | L9 | LWP |
| 1/8 | 75TG0125 | — | — | — | — | .1250 | .1094 | .735 | — |
| 1/8 | — | — | 75TGHP0125 | — | — | .1250 | .1150 | .735 | — |
| 9/64 | 75TG0141 | — | — | — | — | .1410 | .1250 | .740 | — |
| 5/32 | 75TG0156 | — | — | — | — | .1560 | .1406 | .872 | — |
| 11/64 | 75TG0172 | — | — | — | — | .1720 | .1563 | .877 | — |
| 3/16 | — | — | 75TGHP0188 | — | — | .1875 | .1775 | .881 | — |
| 3/16 | 75TG0188 | — | — | — | — | .1880 | .1719 | .881 | — |
| 13/64 | 75TG0203 | — | — | — | — | .2030 | .1875 | .886 | — |
| 7/32 | 75TG0219 | — | — | — | — | .2190 | .2031 | .891 | — |
| 15/64 | 75TG0234 | — | — | — | — | .2340 | .2188 | .895 | — |
| 1/4 | — | — | — | 75TGCHP0250 | — | .2500 | .2450 | 1.000 | — |
| 1/4 | — | 75TGC0250 | — | — | — | .2500 | .2450 | 1.001 | — |
| 1/4 | — | — | 75TGHP0250 | — | — | .2500 | .2400 | 1.480 | — |
| 1/4 | 75TG0250 | — | — | — | — | .2500 | .2344 | 1.481 | — |
| 17/64 | — | 75TGC0266 | — | — | — | .2656 | .2606 | 1.006 | — |
| 17/64 | 75TG0266 | — | — | — | — | .2660 | .2500 | 1.486 | — |
| 9/32 | 75TG0281 | — | — | — | — | .2810 | .2656 | 1.490 | — |
| 9/32 | — | 75TGC0281 | — | — | — | .2813 | .2763 | 1.010 | — |
| 19/64 | — | 75TGC0297 | — | — | — | .2969 | .2919 | 1.015 | — |
| 19/64 | 75TG0297 | — | — | — | — | .2970 | .2813 | 1.495 | — |
| 5/16 | 75TG0312 | — | — | — | — | .3120 | .2969 | 1.500 | — |
| 5/16 | — | 75TGC0312 | — | — | — | .3125 | .3075 | 1.020 | — |
| 5/16 | — | — | 75TGHP0312 | — | — | .3125 | .3025 | 1.499 | — |
| 21/64 | 75TG0328 | — | — | — | — | .3280 | .3125 | 1.505 | — |
| 21/64 | — | 75TGC0328 | — | — | — | .3281 | .3231 | 1.024 | — |
| 11/32 | — | 75TGC0344 | — | — | — | .3438 | .3281 | 1.029 | — |
| 11/32 | 75TG0344 | — | — | — | — | .3440 | .3281 | 1.509 | — |
| 23/64 | 75TG0359 | — | — | — | — | .3590 | .3438 | 1.514 | — |
| 23/64 | — | 75TGC0359 | — | — | — | .3594 | .3544 | 1.034 | — |
| 3/8 | — | — | — | 75TGCHP0375 | — | .3750 | .3700 | 1.038 | — |
| 3/8 | — | — | 75TGHP0375 | — | — | .3750 | .3650 | 1.518 | — |
| 3/8 | — | 75TGC0375 | — | — | — | .3750 | .3700 | 1.518 | — |
| 3/8 | 75TG0375 | — | — | — | — | .3750 | .3594 | 1.519 | — |
| 3/8 | — | — | — | — | 75TGNP0375 | .3750 | — | — | .703 |
| 25/64 | — | 75TGC0391 | — | — | — | .3906 | .3856 | 1.523 | — |
| 25/64 | 75TG0391 | — | — | — | — | .3910 | .3750 | 1.521 | — |
| 13/32 | 75TG0406 | — | — | — | — | .4060 | .3906 | 1.526 | — |
| 13/32 | — | 75TGC0406 | — | — | — | .4063 | .4013 | 1.528 | — |
| 27/64 | — | 75TGC0422 | — | — | — | .4219 | .4169 | 1.533 | — |
| 27/64 | 75TG0422 | — | — | — | — | .4220 | .4063 | 1.531 | — |
| 7/16 | — | — | 75TGHP0438 | — | — | .4375 | .4275 | 1.535 | — |
| 7/16 | — | 75TGC0438 | — | 75TGCHP0438 | — | .4375 | .4325 | 1.537 | — |
| 7/16 | 75TG0438 | — | — | — | — | .4380 | .4219 | 1.536 | — |
| 29/64 | 75TG0453 | — | — | — | — | .4530 | .4375 | 1.540 | — |
| 29/64 | — | 75TGC0453 | — | — | — | .4531 | .4481 | 1.542 | — |
| 15/32 | — | 75TGC0469 | — | — | — | .4688 | .4638 | 1.547 | — |
| 15/32 31/64 | 75TG0469 75TG0484 | — — | — — | — — | — — | .4690 .4840 | .4531 .4688 | 1.545 1.549 | — — |
