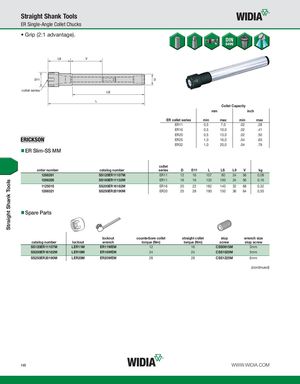

- Grip (2:1 advantage).
collet series
Collet Capacity mm inch
| ER collet series | min | max | min | max |
| ER11 | 0,5 | 7,0 | .02 | .28 |
| ER16 | 0,5 | 10,0 | .02 | .41 |
| ER20 | 0,5 | 13,0 | .02 | .50 |
| ER25 | 1,0 | 16,0 | .04 | .63 |
| ER32 | 1,0 | 20,0 | .04 | .79 |
ER Slim-SS MM
collet
| order number | catalog number | series | D | D11 | L | LS | L9 | V | kg | |
| 1288261 | SS120ER11107M | ER11 | 12 | 16 | 107 | 80 | 24 | 56 | 0,08 | |
| 1288285 | SS160ER11132M | ER11 | 16 | 16 | 132 | 100 | 24 | 56 | 0,16 | |
| 1125015 | SS200ER16182M | ER16 | 20 | 22 | 182 | 140 | 32 | 68 | 0,32 | |
| 1288321 | SS250ER20190M | ER20 | 25 | 28 | 190 | 150 | 36 | 64 | 0,55 |
Spare Parts
| locknut | counterbore collet | straight collet | stop | wrench size | |||||||
| catalog number | locknut | wrench | torque (Nm) | torque (Nm) | screw | stop screw | |||||
| SS120ER11107M | LER11M | ER11WEM | 12 | 16 | CSS0615M | 3mm | |||||
| SS200ER16182M | LER16M | ER16WEM | 24 | 24 | CSS1020M | 5mm | |||||
| SS250ER20190M | LER20M | ER20WEM | 28 | 28 | CSS1225M | 6mm |
(continued)
