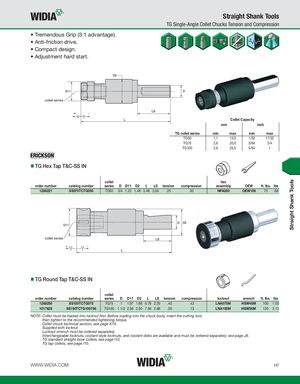

TG Single-Angle Collet Chucks Tension and Compression
- Tremendous Grip (3:1 advantage).
- Anti-friction drive.
- Compact design.
- Adjustment hard start.
collet series
Collet Capacity mm inch
| TG collet series | min | max | min | max | |
| TG50 | 1,1 | 13,5 | 1/32 | 17/32 | |
| TG75 | 2,6 | 20,0 | 3/64 | 3/4 | |
| TG100 | 2,6 | 25,5 | 5/64 | 1 |
TG Hex Tap T&C-SS IN
collet hex
| order number | catalog number | series | D | D11 | D2 | L | LS | tension | compression | assembly | OEW | ft. lbs. lbs | |||
| 1288221 | SS075TCTG050 | TG50 | 3/4 1.22 1.48 5.48 2.00 | .25 | .30 | NPA050 | OEW106 | 75 | .68 |
collet series
TG Round Tap T&C-SS IN
collet
| order number | catalog number | series | D | D11 | D2 | L | LS | tension | compression | locknut | wrench | ft. lbs. lbs | |||
| 1288256 | SS100TCTG075 | TG75 | 1 | 1.97 1.88 6.79 2.20 | .40 | .43 | LNA075M | HSW45M | 100 | 1.50 | |||||
| 1017625 | SS150TCTG100756 | TG100 1 1/2 2.36 2.50 7.56 2.68 | .50 | .13 | LNA100M | HSW58M | 150 | 2.12 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. TG standard straight-bore collets, see page I10. TG tap collets, see page I10.
