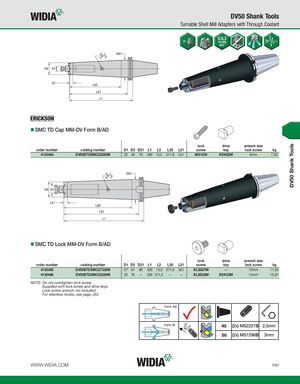

Turnable Shell Mill Adapters with Through Coolant
SMC TD Cap MM-DV Form B/AD
lock drive wrench size
| order number | catalog number | D1 D2 D21 | L1 | L2 | L20 | L21 | screw | key | lock screw | kg | |||||
| 4135484 | DV50BTDSMC22260M | 22 49 | 70 | 260 13,5 | 211,8 | 241 | MS1234 | KDK22M | 8mm | 7,83 |
SMC TD Lock MM-DV Form B/AD
lock drive wrench size
| order number | catalog number | D1 D2 D21 | L1 | L2 | L20 | L21 | screw | key | lock screw | kg | ||||
| 4135485 | DV50BTDSMC27320M | 27 61 | 80 | 320 | 13,5 271,8 | 301 | KLSS27M | — | 10mm | 11,63 | ||||
| 4135486 | DV50BTDSMC32330M | 32 78 | — | 330 311,0 | — | — | KLSS32M | KDK32M | 14mm | 15,91 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Lock screw wrench not included. For retention knobs, see page J33.
