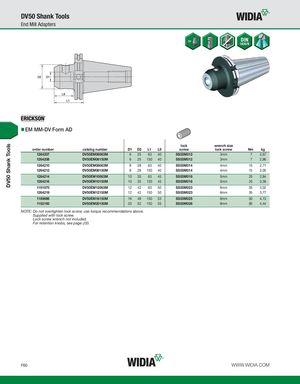

EM MM-DV Form AD
lock wrench size
| order number | catalog number | D1 | D2 | L1 | L9 | screw | lock screw | Nm | kg |
| 1264207 | DV50EM06063M | 6 | 25 | 63 | 40 | SS03M012 | 3mm | 7 | 2,67 |
| 1264208 | DV50EM06150M | 6 | 25 | 150 | 40 | SS03M012 | 3mm | 7 | 2,96 |
| 1264210 | DV50EM08063M | 8 | 28 | 63 | 40 | SS03M014 | 4mm | 15 | 2,71 |
| 1264212 | DV50EM08150M | 8 | 28 | 150 | 40 | SS03M014 | 4mm | 15 | 3,05 |
| 1264214 | DV50EM10063M | 10 | 35 | 63 | 45 | SS03M018 | 5mm | 25 | 2,84 |
| 1264216 | DV50EM10150M | 10 | 35 | 150 | 45 | SS03M018 | 5mm | 25 | 3,39 |
| 1191975 | DV50EM12063M | 12 | 42 | 63 | 50 | SS03M023 | 6mm | 35 | 3,02 |
| 1264219 | DV50EM12150M | 12 | 42 | 150 | 50 | SS03M023 | 6mm | 35 | 3,77 |
| 1189666 | DV50EM16150M | 16 | 48 | 150 | 53 | SS03M025 | 6mm | 50 | 4,13 |
| 1152193 | DV50EM20150M | 20 | 52 | 150 | 55 | SS03M026 | 8mm | 95 | 4,44 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
