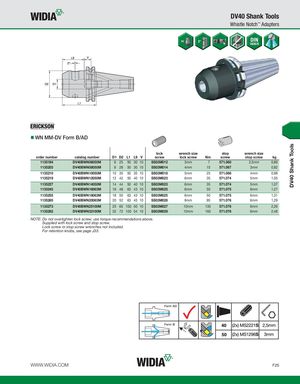

WN MM-DV Form B/AD
| order number | catalog number | D1 D2 | L1 L9 V | lock screw | wrench size lock screw | Nm | stop screw | wrench size stop screw | kg |
| 1135194 | DV40BWN06050M | 6 25 | 50 30 10 | SS03M012 | 3mm | 7 | 571.060 | 2,5mm | 0,89 |
| 1135203 | DV40BWN08050M | 8 28 | 50 30 10 | SS03M014 | 4mm | 15 | 571.067 | 3mm | 0,92 |
| 1135210 | DV40BWN10050M | 10 35 | 50 35 10 | SS03M018 | 5mm | 25 | 571.068 | 4mm | 0,98 |
| 1135219 | DV40BWN12050M | 12 42 | 50 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 1,05 |
| 1135227 | DV40BWN14050M | 14 44 | 50 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 1,07 |
| 1135245 | DV40BWN16063M | 16 48 | 63 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 1,27 |
| 1135255 | DV40BWN18063M | 18 50 | 63 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 1,31 |
| 1135265 | DV40BWN20063M | 20 52 | 63 45 10 | SS03M026 | 8mm | 95 | 571.076 | 6mm | 1,29 |
| 1135273 | DV40BWN25100M | 25 65 | 100 50 10 | SS03M027 | 10mm | 135 | 571.076 | 6mm | 2,26 |
| 1135282 | DV40BWN32100M | 32 72 | 100 54 10 | SS03M029 | 10mm | 160 | 571.076 | 6mm | 2,48 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches not included. For retention knobs, see page J33.
