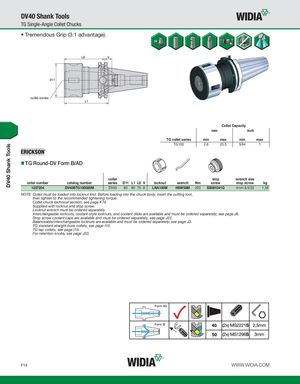

DV40 Shank Tools DV40 Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG100 2,6 25,5 5/64 1 TG Round-DV Form B/AD collet stop wrench size order number catalog number series D11 L1 L9 V locknut wrench Nm screw stop screw kg 1237204 DV40BTG100080M DV40 60 80 70 8 LNA100M HSW58M 203 SS081041G 4mm & 5/32 1,38 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. F14 WWW.WIDIA.COM
