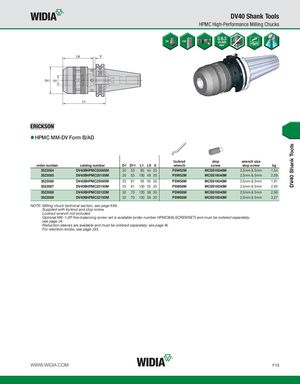

HPMC MM-DV Form B/AD
| order number | catalog number | D1 | D11 | L1 L9 V | locknut wrench | stop screw | wrench size stop screw | kg |
| 3523084 | DV40BHPMC20085M | 20 | 53 | 85 44 20 | PSW52M | MCSS16040M | 2,5mm & 5mm | 1,54 |
| 3523085 | DV40BHPMC20150M | 20 | 53 | 150 49 20 | PSW52M | MCSS16040M | 2,5mm & 5mm | 2,59 |
| 3523086 | DV40BHPMC25095M | 25 | 61 | 95 55 20 | PSW58M | MCSS16040M | 2,5mm & 5mm | 1,91 |
| 3523087 | DV40BHPMC25150M | 25 | 61 | 150 55 20 | PSW58M | MCSS16040M | 2,5mm & 5mm | 2,93 |
| 3523088 | DV40BHPMC32120M | 32 | 70 | 120 58 20 | PSW68M | MCSS16040M | 2,5mm & 5mm | 2,56 |
| 3523089 | DV40BHPMC32150M | 32 | 70 | 150 58 20 | PSW68M | MCSS16040M | 2,5mm & 5mm | 3,27 |
NOTE: Milling chuck technical section, see page K64. Supplied with locknut and stop screw. Locknut wrench not included. Optional M6~1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page J4. Reduction sleeves are available and must be ordered separately; see page I6. For retention knobs, see page J33.
