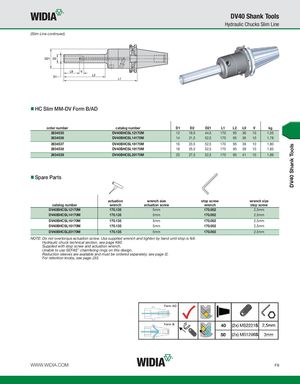

Каталог Widia инструментальная оснастка - страница 789
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
(Slim Line continued)
HC Slim MM-DV Form B/AD
| order number | catalog number | D1 | D2 | D21 | L1 | L2 | L9 V | kg |
| 2634535 | DV40BHCSL12170M | 12 | 19,5 | 44,5 | 170 | 95 | 36 10 | 1,55 |
| 2634536 | DV40BHCSL14170M | 14 | 21,5 | 52,5 | 170 | 95 | 36 10 | 1,78 |
| 2634537 | DV40BHCSL16170M | 16 | 23,5 | 52,5 | 170 | 95 | 39 10 | 1,80 |
| 2634538 | DV40BHCSL18170M | 18 | 25,5 | 52,5 | 170 | 95 | 39 10 | 1,85 |
| 2634539 | DV40BHCSL20170M | 20 | 27,5 | 52,5 | 170 | 95 | 41 10 | 1,89 |
Spare Parts
| catalog number | actuation wrench | wrench size actuation screw | stop screw wrench | wrench size stop screw |
| DV40BHCSL12170M | 170.135 | 5mm | 170.002 | 2,5mm |
| DV40BHCSL14170M | 170.135 | 5mm | 170.002 | 2,5mm |
| DV40BHCSL16170M | 170.135 | 5mm | 170.002 | 2,5mm |
| DV40BHCSL18170M | 170.135 | 5mm | 170.002 | 2,5mm |
| DV40BHCSL20170M | 170.135 | 5mm | 170.002 | 2,5mm |
NOTE: Do not overtorque actuation screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw and actuation wrench. Unable to use SEFAS™ chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33.
