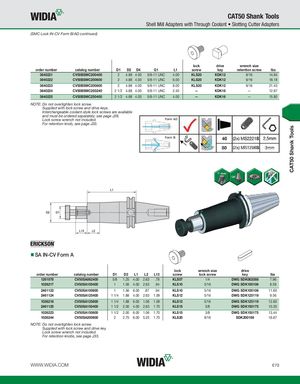

Shell Mill Adapters with Through Coolant • Slotting Cutter Adapters
(SMC Lock IN-CV Form B/AD continued)
| order number | catalog number | D1 | D2 | D4 | G1 | L1 | lock screw | drive key | wrench size retention screw | lbs |
| 3640221 | CV50BSMC200400 | 2 | 4.88 | 4.00 | 5/8-11 UNC | 4.00 | KLS20 | KDK12 | 9/16 | 14.94 |
| 3640222 | CV50BSMC200600 | 2 | 4.88 | 4.00 | 5/8-11 UNC | 6.00 | KLS20 | KDK12 | 9/16 | 18.18 |
| 3640223 | CV50BSMC200800 | 2 | 4.88 | 4.00 | 5/8-11 UNC | 8.00 | KLS20 | KDK12 | 9/16 | 21.43 |
| 3640224 | CV50BSMC250240 | 2 1/2 | 4.88 | 4.00 | 5/8-11 UNC | 2.40 | — | KDK16 | — | 12.87 |
| 3640225 | CV50BSMC250400 | 2 1/2 | 4.88 | 4.00 | 5/8-11 UNC | 4.00 | — | KDK16 | — | 15.80 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knob, see page J33.
SA IN-CV Form A
| order number | catalog number | D1 | D2 | L1 | L2 | L13 | lock screw | wrench size lock screw | drive key | lbs |
| 1261878 | CV50SA062400 | 5/8 | 1.25 | 4.00 | 2.63 | .78 | KLS07 | 1/4 | DWG SDK062088 | 7.96 |
| 1026217 | CV50SA100400 | 1 | 1.56 | 4.00 | 2.63 | .94 | KLS10 | 5/16 | DWG SDK100106 | 8.59 |
| 2461123 | CV50SA100600 | 1 | 1.56 | 6.00 | .87 | .94 | KLS10 | 5/16 | DWG SDK100106 | 11.60 |
| 2461124 | CV50SA125400 | 1 1/4 | 1.88 | 4.00 | 2.63 | 1.09 | KLS12 | 5/16 | DWG SDK125119 | 9.56 |
| 1026218 | CV50SA125600 | 1 1/4 | 1.88 | 6.00 | 1.06 | 1.09 | KLS12 | 5/16 | DWG SDK125119 | 12.60 |
| 2461125 | CV50SA150400 | 1 1/2 | 2.00 | 4.00 | 2.63 | 1.70 | KLS15 | 3/8 | DWG SDK150175 | 10.35 |
| 1026223 | CV50SA150600 | 1 1/2 | 2.00 | 6.00 | 1.06 | 1.70 | KLS15 | 3/8 | DWG SDK150175 | 13.44 |
| 1026244 | CV50SA200600 | 2 | 2.75 | 6.00 | 5.25 | 1.70 | KLS20 | 9/16 | SDK200169 | 16.67 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive key. Lock screw wrench not included. For retention knobs, see page J33.
