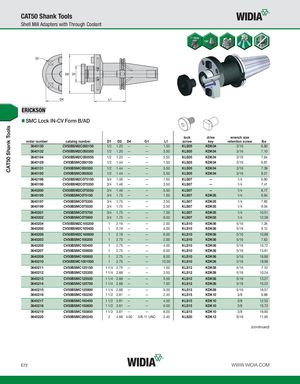

SMC Lock IN-CV Form B/AD
| order number | catalog number | D1 | D2 | D4 | G1 | L1 | lock screw | drive key | wrench size retention screw | lbs |
| 3640130 | CV50BSM2C050150 | 1/2 | 1.20 | — | — | 1.50 | KLS05 | KDK04 | 3/16 | 6.80 |
| 3640132 | CV50BSM2C050350 | 1/2 | 1.20 | — | — | 3.50 | KLS05 | KDK04 | 3/16 | 7.10 |
| 3640194 | CV50BSM2C050550 | 1/2 | 1.20 | — | — | 5.50 | KLS05 | KDK04 | 3/16 | 7.64 |
| 3640129 | CV50BSMC050150 | 1/2 | 1.44 | — | — | 1.50 | KLS05 | KDK04 | 3/16 | 6.81 |
| 3640131 | CV50BSMC050350 | 1/2 | 1.44 | — | — | 3.50 | KLS05 | KDK04 | 3/16 | 7.39 |
| 3640193 | CV50BSMC050550 | 1/2 | 1.44 | — | — | 5.50 | KLS05 | KDK04 | 3/16 | 8.21 |
| 3640196 | CV50BSM2C075150 | 3/4 | 1.46 | — | — | 1.50 | KLS07 | — | 1/4 | 6.80 |
| 3640198 | CV50BSM2C075350 | 3/4 | 1.46 | — | — | 3.50 | KLS07 | — | 1/4 | 7.41 |
| 3640200 | CV50BSM2C075550 | 3/4 | 1.46 | — | — | 5.50 | KLS07 | — | 1/4 | 8.17 |
| 3640195 | CV50BSMC075150 | 3/4 | 1.75 | — | — | 1.50 | KLS07 | KDK05 | 1/4 | 6.94 |
| 3640197 | CV50BSMC075350 | 3/4 | 1.75 | — | — | 3.50 | KLS07 | KDK05 | 1/4 | 7.85 |
| 3640199 | CV50BSMC075550 | 3/4 | 1.75 | — | — | 5.50 | KLS07 | KDK05 | 1/4 | 9.04 |
| 3640201 | CV50BSMC075700 | 3/4 | 1.75 | — | — | 7.00 | KLS07 | KDK05 | 1/4 | 10.51 |
| 3640202 | CV50BSMC075900 | 3/4 | 1.75 | — | — | 9.00 | KLS07 | KDK05 | 1/4 | 12.39 |
| 3640204 | CV50BSM2C100200 | 1 | 2.19 | — | — | 2.00 | KLS10 | KDK06 | 5/16 | 7.26 |
| 3640206 | CV50BSM2C100400 | 1 | 2.19 | — | — | 4.00 | KLS10 | KDK06 | 5/16 | 9.12 |
| 3640208 | CV50BSM2C100600 | 1 | 2.19 | — | — | 6.00 | KLS10 | KDK06 | 5/16 | 10.98 |
| 3640203 | CV50BSMC100200 | 1 | 2.75 | — | — | 2.00 | KLS10 | KDK06 | 5/16 | 7.63 |
| 3640205 | CV50BSMC100400 | 1 | 2.75 | — | — | 4.00 | KLS10 | KDK06 | 5/16 | 10.72 |
| 3640207 | CV50BSMC100600 | 1 | 2.75 | — | — | 6.00 | KLS10 | KDK06 | 5/16 | 13.81 |
| 3640209 | CV50BSMC100800 | 1 | 2.75 | — | — | 8.00 | KLS10 | KDK06 | 5/16 | 16.89 |
| 3640210 | CV50BSMC1001000 | 1 | 2.75 | — | — | 10.00 | KLS10 | KDK06 | 5/16 | 19.98 |
| 3640211 | CV50BSMC125150 | 1 1/4 | 2.75 | — | — | 1.50 | KLS12 | KDK08 | 5/16 | 7.10 |
| 3640212 | CV50BSMC125350 | 1 1/4 | 2.88 | — | — | 3.50 | KLS12 | KDK08 | 5/16 | 10.24 |
| 3640213 | CV50BSMC125550 | 1 1/4 | 2.88 | — | — | 5.50 | KLS12 | KDK08 | 5/16 | 13.27 |
| 3640214 | CV50BSMC125700 | 1 1/4 | 2.88 | — | — | 7.00 | KLS12 | KDK08 | 5/16 | 15.22 |
| 3640215 | CV50BSMC125900 | 1 1/4 | 2.88 | — | — | 9.00 | KLS12 | KDK08 | 5/16 | 18.57 |
| 3640216 | CV50BSMC150240 | 1 1/2 | 3.81 | — | — | 2.40 | KLS15 | KDK10 | 3/8 | 9.88 |
| 3640217 | CV50BSMC150400 | 1 1/2 | 3.81 | — | — | 4.00 | KLS15 | KDK10 | 3/8 | 12.53 |
| 3640218 | CV50BSMC150600 | 1 1/2 | 3.81 | — | — | 6.00 | KLS15 | KDK10 | 3/8 | 15.72 |
| 3640219 | CV50BSMC150800 | 1 1/2 | 3.81 | — | — | 8.00 | KLS15 | KDK10 | 3/8 | 18.90 |
| 3640220 | CV50BSMC200240 | 2 | 4.88 | 4.00 | 5/8-11 UNC | 2.40 | KLS20 | KDK12 | 9/16 | 11.95 |
