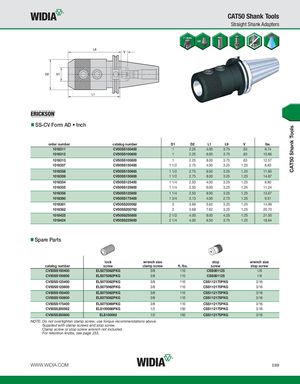

Straight Shank Adapters
SS-CV Form AD • Inch
| order number | catalog number | D1 | D2 | L1 | L9 | V | lbs |
| 1018311 | CV50SS100400 | 1 | 2.25 | 4.00 | 3.75 | .63 | 8.74 |
| 1018312 | CV50SS100600 | 1 | 2.25 | 6.00 | 3.75 | .63 | 10.66 |
| 1018313 | CV50SS100800 | 1 | 2.25 | 8.00 | 3.75 | .63 | 12.57 |
| 1018357 | CV50SS150400 | 1 1/2 | 2.75 | 4.00 | 3.25 | 1.25 | 8.83 |
| 1018358 | CV50SS150600 | 1 1/2 | 2.75 | 6.00 | 3.25 | 1.25 | 11.85 |
| 1018359 | CV50SS150800 | 1 1/2 | 2.75 | 8.00 | 3.25 | 1.25 | 14.87 |
| 1018354 | CV50SS125400 | 1 1/4 | 2.50 | 4.00 | 3.25 | 1.25 | 8.80 |
| 1018355 | CV50SS125600 | 1 1/4 | 2.50 | 6.00 | 3.25 | 1.25 | 11.24 |
| 1018356 | CV50SS125800 | 1 1/4 | 2.50 | 8.00 | 3.25 | 1.25 | 13.67 |
| 1018360 | CV50SS175400 | 1 3/4 | 3.13 | 4.00 | 2.75 | 1.25 | 9.51 |
| 1018361 | CV50SS200562 | 2 | 3.69 | 5.62 | 3.25 | 1.25 | 14.99 |
| 1018362 | CV50SS200762 | 2 | 3.69 | 7.62 | 3.25 | 1.25 | 20.70 |
| 1018425 | CV50SS250800 | 2 1/2 | 4.00 | 8.00 | 4.25 | 1.25 | 21.50 |
| 1018424 | CV50SS225650 | 2 1/4 | 4.00 | 6.50 | 3.75 | 1.25 | 18.64 |
Spare Parts
| catalog number | lock screw | wrench size clamp screw | ft. lbs. | stop screw | wrench size stop screw |
| CV50SS100400 | ELS075062PKG | 3/8 | 110 | CSS081125 | 1/8 |
| CV50SS100600 | ELS075062PKG | 3/8 | 110 | CSS081125 | 1/8 |
| CV50SS125400 | ELS075062PKG | 3/8 | 110 | CSS112175PKG | 3/16 |
| CV50SS125600 | ELS075062PKG | 3/8 | 110 | CSS112175PKG | 3/16 |
| CV50SS150400 | ELS075062PKG | 3/8 | 110 | CSS112175PKG | 3/16 |
| CV50SS150600 | ELS075062PKG | 3/8 | 110 | CSS112175PKG | 3/16 |
| CV50SS175400 | ELS075069PKG | 3/8 | 110 | CSS112175PKG | 3/16 |
| CV50SS200562 | ELS100088PKG | 1/2 | 150 | CSS112175PKG | 3/16 |
| CV50SS250800 | ELS100062 | 1/2 | 150 | CSS112175PKG | 3/16 |
NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screws and stop screw. Clamp screw or stop screw wrench not included. For retention knobs, see page J33.
