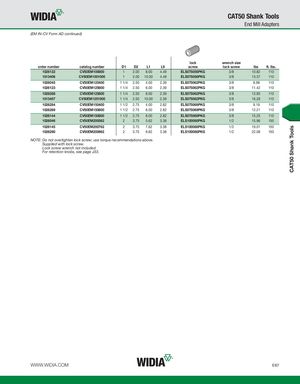

(EM IN-CV Form AD continued)
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | lbs | ft. lbs. |
| 1026122 | CV50EM100800 | 1 | 2.00 | 8.00 | 4.49 | ELS075056PKG | 3/8 | 10.82 | 110 |
| 1013406 | CV50EM1001000 | 1 | 2.00 | 10.00 | 4.49 | ELS075056PKG | 3/8 | 13.37 | 110 |
| 1026045 | CV50EM125400 | 1 1/4 | 2.50 | 4.00 | 2.39 | ELS075062PKG | 3/8 | 8.98 | 110 |
| 1026123 | CV50EM125600 | 1 1/4 | 2.50 | 6.00 | 2.39 | ELS075062PKG | 3/8 | 11.42 | 110 |
| 1026288 | CV50EM125800 | 1 1/4 | 2.50 | 8.00 | 2.39 | ELS075062PKG | 3/8 | 13.85 | 110 |
| 1013407 | CV50EM1251000 | 1 1/4 | 2.50 | 10.00 | 2.39 | ELS075062PKG | 3/8 | 16.28 | 110 |
| 1026284 | CV50EM150400 | 1 1/2 | 2.75 | 4.00 | 2.82 | ELS075069PKG | 3/8 | 9.19 | 110 |
| 1026289 | CV50EM150600 | 1 1/2 | 2.75 | 6.00 | 2.82 | ELS075069PKG | 3/8 | 12.21 | 110 |
| 1026144 | CV50EM150800 | 1 1/2 | 2.75 | 8.00 | 2.82 | ELS075069PKG | 3/8 | 15.25 | 110 |
| 1026046 | CV50EM200562 | 2 | 3.75 | 5.62 | 3.38 | ELS100088PKG | 1/2 | 15.96 | 150 |
| 1026145 | CV50EM200762 | 2 | 3.75 | 7.62 | 3.38 | ELS100088PKG | 1/2 | 19.01 | 150 |
| 1026290 | CV50EM200962 | 2 | 3.75 | 9.62 | 3.38 | ELS100088PKG | 1/2 | 22.08 | 150 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
