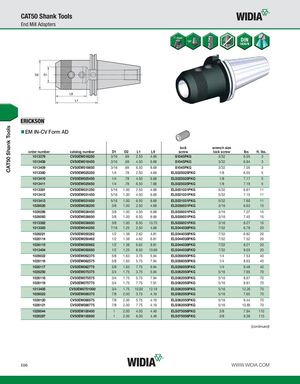

EM IN-CV Form AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | lbs | ft. lbs. |
| 1013379 | CV50EM018250 | 3/16 | .69 | 2.50 | 4.69 | S1045PKG | 3/32 | 6.55 | 3 |
| 1013408 | CV50EM018450 | 3/16 | .69 | 4.50 | 6.69 | S1045PKG | 3/32 | 6.84 | 3 |
| 1013409 | CV50EM018650 | 3/16 | .69 | 6.50 | 8.69 | S1045PKG | 3/32 | 7.05 | 3 |
| 1013380 | CV50EM025250 | 1/4 | .78 | 2.50 | 4.69 | ELS025025PKG | 1/8 | 6.55 | 5 |
| 1013410 | CV50EM025450 | 1/4 | .78 | 4.50 | 6.69 | ELS025025PKG | 1/8 | 7.17 | 5 |
| 1013411 | CV50EM025650 | 1/4 | .78 | 6.50 | 7.68 | ELS025025PKG | 1/8 | 7.19 | 5 |
| 1013381 | CV50EM031250 | 5/16 | 1.00 | 2.50 | 4.69 | ELS031031PKG | 5/32 | 6.61 | 11 |
| 1013412 | CV50EM031450 | 5/16 | 1.00 | 4.50 | 6.69 | ELS031031PKG | 5/32 | 7.15 | 11 |
| 1013413 | CV50EM031650 | 5/16 | 1.00 | 6.50 | 8.69 | ELS031031PKG | 5/32 | 7.60 | 11 |
| 1026020 | CV50EM038250 | 3/8 | 1.00 | 2.50 | 4.69 | ELS038031PKG | 3/16 | 6.63 | 15 |
| 1026286 | CV50EM038450 | 3/8 | 1.00 | 4.50 | 6.69 | ELS038031PKG | 3/16 | 7.07 | 15 |
| 1026093 | CV50EM038650 | 3/8 | 1.00 | 6.50 | 8.69 | ELS038031PKG | 3/16 | 7.45 | 15 |
| 1013382 | CV50EM038850 | 3/8 | 1.00 | 8.50 | 10.70 | ELS038031PKG | 3/16 | 8.27 | 15 |
| 1013383 | CV50EM044250 | 7/16 | 1.25 | 2.50 | 4.69 | ELS044038PKG | 7/32 | 6.78 | 20 |
| 1026021 | CV50EM050262 | 1/2 | 1.38 | 2.62 | 4.81 | ELS044038PKG | 7/32 | 6.82 | 20 |
| 1026114 | CV50EM050462 | 1/2 | 1.38 | 4.62 | 6.81 | ELS044038PKG | 7/32 | 7.52 | 20 |
| 1026115 | CV50EM050662 | 1/2 | 1.38 | 6.62 | 8.81 | ELS044038PKG | 7/32 | 8.21 | 20 |
| 1013404 | CV50EM050850 | 1/2 | 1.25 | 8.50 | 10.69 | ELS044038PKG | 7/32 | 9.03 | 20 |
| 1026022 | CV50EM062375 | 5/8 | 1.63 | 3.75 | 5.94 | ELS056050PKG | 1/4 | 7.53 | 40 |
| 1026116 | CV50EM062575 | 5/8 | 1.63 | 5.75 | 7.94 | ELS056050PKG | 1/4 | 8.63 | 40 |
| 1026117 | CV50EM062775 | 5/8 | 1.63 | 7.75 | 9.94 | ELS056050PKG | 1/4 | 9.48 | 40 |
| 1026250 | CV50EM075375 | 3/4 | 1.75 | 3.75 | 5.94 | ELS062050PKG | 5/16 | 7.65 | 70 |
| 1026118 | CV50EM075575 | 3/4 | 1.75 | 5.75 | 7.94 | ELS062050PKG | 5/16 | 8.67 | 70 |
| 1026119 | CV50EM075775 | 3/4 | 1.75 | 7.75 | 7.91 | ELS062050PKG | 5/16 | 9.81 | 70 |
| 1013405 | CV50EM0751000 | 3/4 | 1.75 | 10.00 | 12.19 | ELS062050PKG | 5/16 | 12.25 | 70 |
| 1026023 | CV50EM088375 | 7/8 | 2.00 | 3.75 | 4.19 | ELS062050PKG | 5/16 | 7.65 | 70 |
| 1026120 | CV50EM088575 | 7/8 | 2.00 | 5.75 | 4.19 | ELS062050PKG | 5/16 | 9.44 | 70 |
| 1026121 | CV50EM088775 | 7/8 | 2.00 | 7.75 | 4.19 | ELS062050PKG | 5/16 | 10.85 | 70 |
| 1026044 | CV50EM100400 | 1 | 2.00 | 4.00 | 4.49 | ELS075056PKG | 3/8 | 7.94 | 110 |
| 1026287 | CV50EM100600 | 1 | 2.00 | 6.00 | 4.49 | ELS075056PKG | 3/8 | 9.39 | 110 |
(continued)
