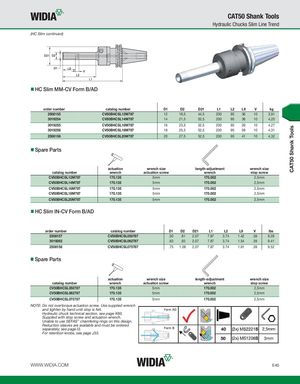

CAT50 Shank Tools CAT50 Shank Tools Hydraulic Chucks Slim Line Trend (HC Slim continued) HC Slim MM-CV Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V kg 2508155 CV50BHCSL12M787 12 19,5 44,5 200 95 36 10 3,91 3019254 CV50BHCSL14M787 14 21,5 52,5 200 95 36 10 4,25 3019255 CV50BHCSL16M787 16 23,5 52,5 200 95 39 10 4,27 3019256 CV50BHCSL18M787 18 25,5 52,5 200 95 39 10 4,31 2508156 CV50BHCSL20M787 20 27,5 52,5 200 95 41 10 4,32 Spare Parts actuation wrench size length-adjustment wrench size catalog number wrench actuation screw wrench stop screw CV50BHCSL12M787 170.135 5mm 170.002 2,5mm CV50BHCSL14M787 170.135 5mm 170.002 2,5mm CV50BHCSL16M787 170.135 5mm 170.002 2,5mm CV50BHCSL18M787 170.135 5mm 170.002 2,5mm CV50BHCSL20M787 170.135 5mm 170.002 2,5mm HC Slim IN-CV Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V lbs 2508157 CV50BHCSL050787 .50 .81 2.07 7.87 3.74 1.42 .39 9.28 3019262 CV50BHCSL062787 .63 .93 2.07 7.87 3.74 1.54 .39 9.41 2508158 CV50BHCSL075787 .75 1.06 2.07 7.87 3.74 1.61 .39 9.52 Spare Parts actuation wrench size length-adjustment wrench size catalog number wrench actuation screw wrench stop screw CV50BHCSL050787 170.135 5mm 170.002 2,5mm CV50BHCSL062787 170.135 5mm 170.002 2,5mm CV50BHCSL075787 170.135 5mm 170.002 2,5mm NOTE: Do not overtorque actuation screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw and actuation wrench. Unable to use SEFAS™ chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. WWW.WIDIA.COM E45
