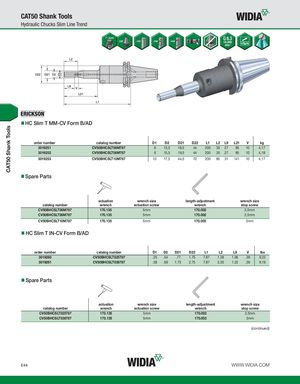

CAT50 Shank Tools CAT50 Shank Tools Hydraulic Chucks Slim Line Trend HC Slim T MM-CV Form B/AD order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V kg 3019251 CV50BHCSLT06M787 6 13,5 19,5 44 200 35 27 85 10 4,17 3019252 CV50BHCSLT08M787 8 15,5 19,5 44 200 35 27 85 10 4,18 3019253 CV50BHCSLT10M787 10 17,5 44,5 70 200 85 31 141 10 4,17 Spare Parts actuation wrench size length-adjustment wrench size catalog number wrench actuation screw wrench stop screw CV50BHCSLT06M787 170.135 5mm 170.002 2,5mm CV50BHCSLT08M787 170.135 5mm 170.002 2,5mm CV50BHCSLT10M787 170.135 5mm 170.003 3mm HC Slim T IN-CV Form B/AD order number catalog number D1 D2 D21 D22 L1 L2 L9 V lbs 3019260 CV50BHCSLT025787 .25 .54 .77 1.75 7.87 1.38 1.06 .39 9.22 3019261 CV50BHCSLT038787 .38 .69 1.75 2.75 7.87 3.35 1.22 .39 9.19 Spare Parts actuation wrench size length-adjustment wrench size catalog number wrench actuation screw wrench stop screw CV50BHCSLT025787 170.135 5mm 170.002 2,5mm CV50BHCSLT038787 170.135 5mm 170.003 3mm (continued) E44 WWW.WIDIA.COM
