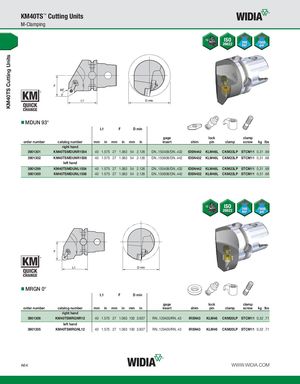

KM40TS Cutting Units KM40TS™ Cutting Units M-Clamping MDUN 93° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3901301 KM40TSMDUNR1504 40 1.575 27 1.063 54 2.126 DN..150408/DN..432 IDSN442 KLM46L CKM23LP STCM11 0,31 .69 3901302 KM40TSMDUNR1506 40 1.575 27 1.063 54 2.126 DN..150608/DN..442 IDSN432 KLM46L CKM23LP STCM11 0,31 .68 left hand 3901299 KM40TSMDUNL1504 40 1.575 27 1.063 54 2.126 DN..150408/DN..432 IDSN442 KLM46L CKM23LP STCM11 0,31 .69 3901300 KM40TSMDUNL1506 40 1.575 27 1.063 54 2.126 DN..150608/DN..442 IDSN432 KLM46L CKM23LP STCM11 0,31 .68 MRGN 0° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3901306 KM40TSMRGNR12 40 1.575 27 1.063 100 3.937 RN..120400/RN..43 IRSN43 KLM46 CKM20LP STCM11 0,32 .71 left hand 3901305 KM40TSMRGNL12 40 1.575 27 1.063 100 3.937 RN..120400/RN..43 IRSN43 KLM46 CKM20LP STCM11 0,32 .71 A64 WWW.WIDIA.COM
