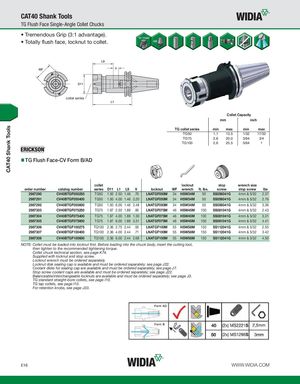

TG Flush Face Single-Angle Collet Chucks
- Tremendous Grip (3:1 advantage).
- Totally flush face, locknut to collet.
collet series
Collet Capacity mm inch
| TG collet series | min | max | min | max | |
| TG50 | 1,1 | 13,5 | 1/32 | 17/32 | |
| TG75 | 2,6 | 20,0 | 3/64 | 3/4 | |
| TG100 | 2,6 | 25,5 | 5/64 | 1 |
TG Flush Face-CV Form B/AD
collet locknut stop wrench size
| order number | catalog number | series | D11 | L9 L1 V | locknut WF | wrench | ft. lbs. | screw stop screw | lbs | ||
| 2987290 | CV40BTGF050250 | TG50 | 1.50 2.50 1.46 | .70 | LNATGF050M | 34 | HSW34M | 50 | SS056041G | 4mm & 5/32 | 2.37 |
| 2987291 | CV40BTGF050400 | TG50 | 1.50 4.00 1.46 2.20 | LNATGF050M | 34 | HSW34M | 50 | SS056041G | 4mm & 5/32 | 2.76 | |
| 2987292 | CV40BTGF050600 | TG50 | 1.50 6.00 1.46 2.48 | LNATGF050M | 34 | HSW34M | 50 | SS056041G | 4mm & 5/32 | 3.36 | |
| 2987303 | CV40BTGF075250 | TG75 | 1.97 2.50 1.89 | .95 | LNATGF075M | 46 | HSW45M | 100 | SS081041G | 4mm & 5/32 | 2.43 |
| 2987304 | CV40BTGF075400 | TG75 | 1.97 4.00 1.89 1.30 | LNATGF075M | 46 | HSW45M | 100 | SS081041G | 4mm & 5/32 | 3.31 | |
| 2987305 | CV40BTGF075600 | TG75 | 1.97 6.00 1.89 3.31 | LNATGF075M | 46 | HSW45M | 100 | SS081041G | 4mm & 5/32 | 4.41 | |
| 2987306 | CV40BTGF100275 | TG100 2.36 2.75 2.44 | .55 | LNATGF100M | 55 | HSW58M | 150 | SS112041G | 4mm & 5/32 | 2.55 | |
| 2987307 | CV40BTGF100400 | TG100 2.36 4.00 2.44 | .71 | LNATGF100M | 55 | HSW58M | 150 | SS112041G | 4mm & 5/32 | 3.42 | |
| 2987308 | CV40BTGF100600 | TG100 2.36 6.00 2.44 2.68 | LNATGF100M | 55 | HSW58M | 150 | SS112041G | 4mm & 5/32 | 4.50 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw.
Locknut wrench must be ordered separately. Locknut disk sealing cap is available and must be ordered separately; see page J22. Coolant disks for sealing cap are available and must be ordered separately; see page J7. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33.
