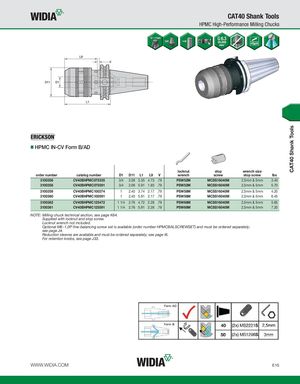

HPMC IN-CV Form B/AD
| order number | catalog number | D1 | D11 | L1 | L9 | V | locknut wrench | stop screw | wrench size stop screw | lbs |
| 3100356 | CV40BHPMC075335 | 3/4 | 2.09 | 3.35 | 4.73 | .79 | PSW52M | MCSS16040M | 2,5mm & 5mm | 3.40 |
| 3100358 | CV40BHPMC075591 | 3/4 | 2.09 | 5.91 | 1.93 | .79 | PSW52M | MCSS16040M | 2,5mm & 5mm | 5.70 |
| 3100359 | CV40BHPMC100374 | 1 | 2.40 | 3.74 | 2.17 | .79 | PSW58M | MCSS16040M | 2,5mm & 5mm | 4.20 |
| 3100360 | CV40BHPMC100591 | 1 | 2.40 | 5.91 | 2.17 | .79 | PSW58M | MCSS16040M | 2,5mm & 5mm | 6.45 |
| 3100362 | CV40BHPMC125472 | 1 1/4 | 2.76 | 4.72 | 2.28 | .79 | PSW68M | MCSS16040M | 2,5mm & 5mm | 5.65 |
| 3100361 | CV40BHPMC125591 | 1 1/4 | 2.76 | 5.91 | 2.28 | .79 | PSW68M | MCSS16040M | 2,5mm & 5mm | 7.20 |
NOTE: Milling chuck technical section, see page K64. Supplied with locknut and stop screw. Locknut wrench not included. Optional M6~1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page J4. Reduction sleeves are available and must be ordered separately; see page I6. For retention knobs, see page J33.
