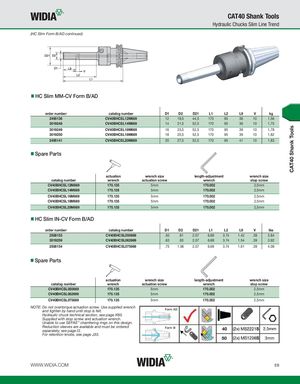

CAT40 Shank Tools CAT40 Shank Tools Hydraulic Chucks Slim Line Trend (HC Slim Form B/AD continued) HC Slim MM-CV Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V kg 2495136 CV40BHCSL12M669 12 19,5 44,5 170 95 36 10 1,56 3019248 CV40BHCSL14M669 14 21,5 52,5 170 95 36 10 1,75 3019249 CV40BHCSL16M669 16 23,5 52,5 170 95 39 10 1,78 3019250 CV40BHCSL18M669 18 25,5 52,5 170 95 39 10 1,82 2495141 CV40BHCSL20M669 20 27,5 52,5 170 95 41 10 1,83 Spare Parts actuation wrench size length-adjustment wrench size catalog number wrench actuation screw wrench stop screw CV40BHCSL12M669 170.135 5mm 170.002 2,5mm CV40BHCSL14M669 170.135 5mm 170.002 2,5mm CV40BHCSL16M669 170.135 5mm 170.002 2,5mm CV40BHCSL18M669 170.135 5mm 170.002 2,5mm CV40BHCSL20M669 170.135 5mm 170.002 2,5mm HC Slim IN-CV Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V lbs 2508153 CV40BHCSL050669 .50 .81 2.07 6.69 3.74 1.42 .39 3.84 3019259 CV40BHCSL062669 .63 .93 2.07 6.69 3.74 1.54 .39 3.92 2508154 CV40BHCSL075669 .75 1.06 2.07 6.69 3.74 1.61 .39 4.08 Spare Parts actuation wrench size length-adjustment wrench size catalog number wrench actuation screw wrench stop screw CV40BHCSL050669 170.135 5mm 170.002 2,5mm CV40BHCSL062669 170.135 5mm 170.002 2,5mm CV40BHCSL075669 170.135 5mm 170.002 2,5mm NOTE: Do not overtorque actuation screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw and actuation wrench. Unable to use SEFAS™ chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. WWW.WIDIA.COM E9
