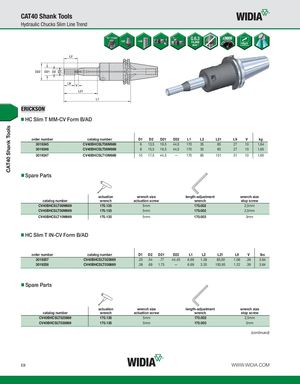

| �HC Slim T MM-CV | Form B/AD | ||||||||||
| order number | catalog number | D1 | D2 | D21 | D22 | L1 | L2 | L21 | L9 | V | kg |
| 3019245 | CV40BHCSLT06M669 | 6 | 13,5 | 19,5 | 44,5 | 170 | 35 | 85 | 27 | 10 | 1,64 |
| 3019246 | CV40BHCSLT08M669 | 8 | 15,5 | 19,5 | 44,5 | 170 | 35 | 85 | 27 | 10 | 1,65 |
| 3019247 | CV40BHCSLT10M669 | 10 | 17,5 | 44,5 | — | 170 | 85 | 151 | 31 | 10 | 1,65 |
Spare Parts
| catalog number | actuation wrench | wrench size actuation screw | length-adjustment wrench | wrench size stop screw |
| CV40BHCSLT06M669 | 170.135 | 5mm | 170.002 | 2,5mm |
| CV40BHCSLT08M669 | 170.135 | 5mm | 170.002 | 2,5mm |
| CV40BHCSLT10M669 | 170.135 | 5mm | 170.003 | 3mm |
HC Slim T IN-CV Form B/AD
| order number | catalog number | D1 | D2 | D21 | D22 | L1 | L2 | L21 | L9 | V | lbs |
| 3019257 | CV40BHCSLT025669 | .25 | .54 | .77 | 44,45 | 6.69 | 1.38 | 85,00 | 1.06 | .39 | 3.64 |
| 3019258 | CV40BHCSLT038669 | .38 | .69 | 1.75 | — | 6.69 | 3.35 | 150,95 | 1.22 | .39 | 3.64 |
Spare Parts
| actuation | wrench size | length-adjustment | wrench size | |
| catalog number | wrench | actuation screw | wrench | stop screw |
| CV40BHCSLT025669 | 170.135 | 5mm | 170.002 | 2,5mm |
| CV40BHCSLT038669 | 170.135 | 5mm | 170.003 | 3mm |
(continued)
