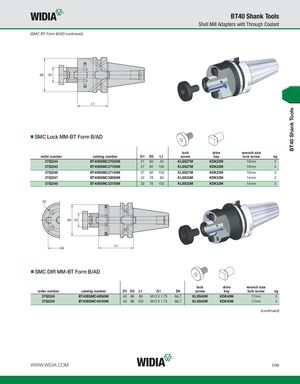

(SMC BT Form B/AD continued)
SMC Lock MM-BT Form B/AD
| order number | catalog number | D1 | D2 | L1 | lock screw | drive key | wrench size lock screw | kg |
| 3752244 | BT40BSMC27055M | 27 | 60 | 55 | KLSS27M | KDK22M | 10mm | 2 |
| 3752245 | BT40BSMC27100M | 27 | 60 | 100 | KLSS27M | KDK22M | 10mm | 3 |
| 3752246 | BT40BSMC27150M | 27 | 60 | 150 | KLSS27M | KDK22M | 10mm | 4 |
| 3752247 | BT40BSMC32060M | 32 | 78 | 60 | KLSS32M | KDK32M | 14mm | 2 |
| 3752248 | BT40BSMC32100M | 32 | 78 | 100 | KLSS32M | KDK32M | 14mm | 3 |
SMC DIR MM-BT Form B/AD
| order number | catalog number | D1 D2 | L1 | G1 | D4 | lock screw | drive key | wrench size lock screw | kg |
| 3752249 | BT40BSMC40060M | 40 89 | 60 | M12 X 1.75 | 66,7 | KLSS40M | KDK40M | 17mm | 3 |
| 3752250 | BT40BSMC40100M | 40 89 | 100 | M12 X 1.75 | 66,7 | KLSS40M | KDK40M | 17mm | 4 |
| (cont | inued) |
