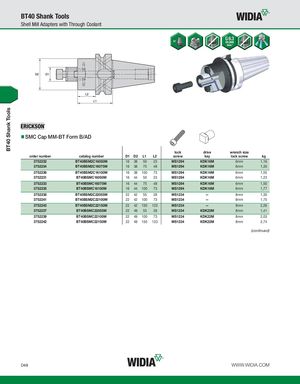

BT40 Shank Tools BT40 Shank Tools Shell Mill Adapters with Through Coolant SMC Cap MM-BT Form B/AD lock drive wrench size order number catalog number D1 D2 L1 L2 screw key lock screw kg 3752232 BT40BSM2C16050M 16 38 50 23 MS1294 KDK16M 6mm 1,16 3752234 BT40BSM2C16075M 16 38 75 48 MS1294 KDK16M 6mm 1,35 3752236 BT40BSM2C16100M 16 38 100 73 MS1294 KDK16M 6mm 1,55 3752231 BT40BSMC16050M 16 44 50 23 MS1294 KDK16M 6mm 1,23 3752233 BT40BSMC16075M 16 44 75 48 MS1294 KDK16M 6mm 1,50 3752235 BT40BSMC16100M 16 44 100 73 MS1294 KDK16M 6mm 1,77 3752238 BT40BSM2C22055M 22 42 55 28 MS1234 — 8mm 1,30 3752241 BT40BSM2C22100M 22 42 100 73 MS1234 — 8mm 1,75 3752243 BT40BSM2C22150M 22 42 150 123 MS1234 — 8mm 2,26 3752237 BT40BSMC22055M 22 49 55 28 MS1234 KDK22M 8mm 1,41 3752239 BT40BSMC22100M 22 49 100 73 MS1234 KDK22M 8mm 2,03 3752242 BT40BSMC22150M 22 49 150 123 MS1234 KDK22M 8mm 2,74 (continued) D48 WWW.WIDIA.COM
