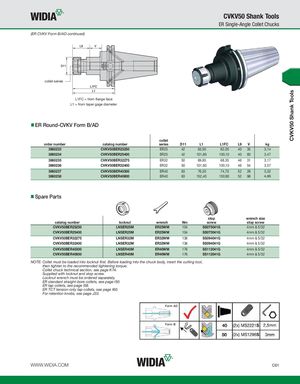

CVKV50 Shank Tools CVKV50 Shank Tools ER Single-Angle Collet Chucks (ER CVKV Form B/AD continued) collet series L1FC = from flange face L1 = from taper gage diameter ER Round-CVKV Form B/AD collet order number catalog number series D11 L1 L1FC L9 V kg 3860233 CVKV50BER25250 ER25 42 63,50 62,00 40 35 3,14 3860234 CVKV50BER25400 ER25 42 101,60 100,10 40 60 3,47 3860235 CVKV50BER32275 ER32 50 69,85 68,35 46 31 3,17 3860236 CVKV50BER32400 ER32 50 101,60 100,10 46 54 3,57 3860237 CVKV50BER40300 ER40 63 76,20 74,70 52 28 3,32 3860238 CVKV50BER40600 ER40 63 152,40 150,90 52 98 4,85 Spare Parts stop wrench size catalog number locknut wrench Nm screw stop screw CVKV50BER25250 LNSER25M ER25WM 104 SS075041G 4mm & 5/32 CVKV50BER25400 LNSER25M ER25WM 104 SS075041G 4mm & 5/32 CVKV50BER32275 LNSER32M ER32WM 136 SS094041G 4mm & 5/32 CVKV50BER32400 LNSER32M ER32WM 136 SS094041G 4mm & 5/32 CVKV50BER40300 LNSER40M ER40WM 176 SS112041G 4mm & 5/32 CVKV50BER40600 LNSER40M ER40WM 176 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. For retention knobs, see page J33. WWW.WIDIA.COM C61
