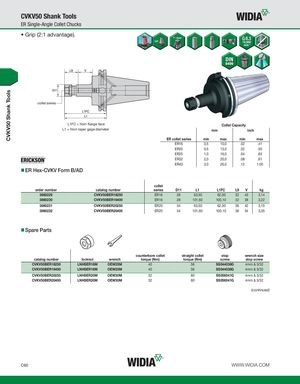

- Grip (2:1 advantage).
| collet series | ||||||
| L1FC = from flange face L1 = from taper gage diameter | m | Collet m | Capacity in | ch | ||
| ER collet series | min | max | min | max | ||
| ER16 | 0,5 | 10,0 | .02 | .41 | ||
| ER20 | 0,5 | 13,0 | .02 | .50 | ||
| ER25 | 1,0 | 16,0 | .04 | .63 | ||
| ER32 | 2,0 | 20,0 | .08 | .81 | ||
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-CVKV Form B/AD
| order number | catalog number | collet series | D11 | L1 | L1FC | L9 | V | kg |
| 3860229 | CVKV50BER16250 | ER16 | 28 | 63,50 | 62,00 | 32 | 43 | 3,14 |
| 3860230 | CVKV50BER16400 | ER16 | 28 | 101,60 | 100,10 | 32 | 38 | 3,22 |
| 3860231 | CVKV50BER20250 | ER20 | 34 | 63,50 | 62,00 | 36 | 42 | 3,15 |
| 3860232 | CVKV50BER20400 | ER20 | 34 | 101,60 | 100,10 | 36 | 54 | 3,35 |
Spare Parts
| catalog number | locknut | wrench | counterbore collet torque (Nm) | straight collet torque (Nm) | stop screw | wrench size stop screw |
| CVKV50BER16250 | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| CVKV50BER16400 | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| CVKV50BER20250 | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
| CVKV50BER20400 | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
(continued)
