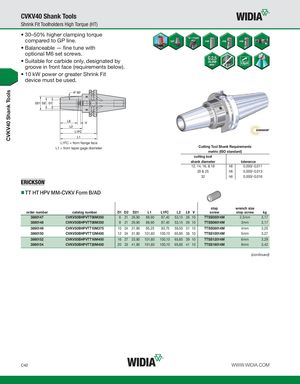

CVKV40 Shank Tools CVKV40 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. L1FC = from flange face L1 = from taper gage diameter Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-CVKV Form B/AD stop wrench size order number catalog number D1 D2 D21 L1 L1FC L2 L9 V screw stop screw kg 3860147 CVKV50BHPVTT06M350 6 21 26,90 88,90 87,40 53,15 26 10 TTSS05014M 2,5mm 3,17 3860148 CVKV50BHPVTT08M350 8 21 26,90 88,90 87,40 53,15 26 10 TTSS06014M 3mm 3,17 3860149 CVKV50BHPVTT10M375 10 24 31,90 95,25 93,75 59,50 31 10 TTSS08014M 4mm 3,25 3860150 CVKV50BHPVTT12M400 12 24 31,90 101,60 100,10 65,85 36 10 TTSS10014M 5mm 3,27 3860152 CVKV50BHPVTT16M400 16 27 33,90 101,60 100,10 65,85 39 10 TTSS12014M 6mm 3,29 3860154 CVKV50BHPVTT20M400 20 33 41,90 101,60 100,10 65,85 41 10 TTSS16014M 8mm 3,42 (continued) C42 WWW.WIDIA.COM
