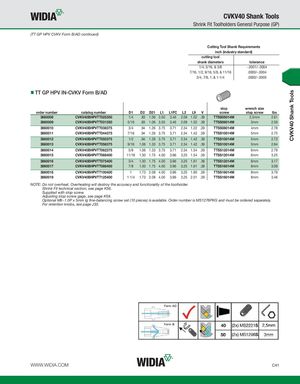

CVKV40 Shank Tools CVKV40 Shank Tools Shrink Fit Toolholders General Purpose (GP) (TT GP HPV CVKV Form B/AD continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/4, 5/16, & 3/8 -.0001/-.0004 7/16, 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, & 1-1/4 .0000/-.0005 TT GP HPV IN-CVKV Form B/AD stop wrench size order number catalog number D1 D2 D21 L1 L1FC L2 L9 V screw stop screw lbs 3860008 CVKV40BHPVTT025350 1/4 .83 1.06 3.50 3.46 2.09 1.02 .39 TTSS05014M 2,5mm 2.61 3860009 CVKV40BHPVTT031350 5/16 .83 1.06 3.50 3.46 2.09 1.02 .39 TTSS06014M 3mm 2.59 3860010 CVKV40BHPVTT038375 3/4 .94 1.26 3.75 3.71 2.34 1.22 .39 TTSS08014M 4mm 2.78 3860011 CVKV40BHPVTT044375 7/16 .94 1.26 3.75 3.71 2.34 1.42 .39 TTSS10014M 5mm 2.75 3860012 CVKV40BHPVTT050375 1/2 .94 1.26 3.75 3.71 2.34 1.42 .39 TTSS10014M 5mm 2.73 3860013 CVKV40BHPVTT056375 9/16 1.06 1.33 3.75 3.71 2.34 1.42 .39 TTSS10014M 5mm 2.84 3860014 CVKV40BHPVTT062375 5/8 1.06 1.33 3.75 3.71 2.34 1.54 .39 TTSS12014M 6mm 2.79 3860015 CVKV40BHPVTT068400 11/16 1.30 1.75 4.00 3.96 3.25 1.54 .39 TTSS12014M 6mm 3.25 3860016 CVKV40BHPVTT075400 3/4 1.30 1.75 4.00 3.96 3.25 1.61 .39 TTSS12014M 8mm 3.17 3860017 CVKV40BHPVTT088400 7/8 1.30 1.75 4.00 3.96 3.25 1.61 .39 TTSS16014M 8mm 3.09 3860018 CVKV40BHPVTT100400 1 1.73 2.08 4.00 3.96 3.25 1.85 .39 TTSS16014M 8mm 3.79 3860019 CVKV40BHPVTT125400 1 1/4 1.73 2.08 4.00 3.96 3.25 2.01 .39 TTSS16014M 8mm 3.46 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6~1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33. WWW.WIDIA.COM C41
