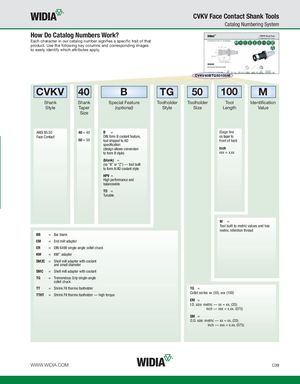

CVKV Face Contact Shank Tools
How Do Catalog Numbers Work?
Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply.
CVKV40BTG50100M
CVKV 40 B TG 50 100 M
| Shank | Shank | Special Feature | Toolholder | Toolholder | Tool | Identification | ||||
| Style | Taper | (optional) | Style | Size | Length | Value |
Size
| ANSI B5.50 | 40 = 40 | B | = | (Gage line |
| Face Contact | DIN form B coolant feature, | on taper to | ||
| 50 = 50 | tool shipped to AD | front of tool) |
specification (design allows conversion inch to form B style) xxx = x.xx (blank) =
(no “B” or “Z”) — tool built to form A/AD coolant style HPV = High performance and balanceable TD = Tunable
| BB | = Bar blank |
| EM | = End mill adapter |
| ER | = DIN 6499 single-angle collet chuck |
| KM | = KM™ adapter |
| SM2C | = Shell mill adapter with coolant |
| and small diameter | |
| SMC | = Shell mill adapter with coolant |
| TG | = Tremendous Grip single-angle |
| collet chuck | |
| TT | = Shrink Fit thermo toolholder |
| TTHT | = Shrink Fit thermo toolholder — high torque |
M = Tool built to metric values and has metric retention thread
TG = Collet series xx (50), xxx (100) EM = I.D. size: metric — xx = xx, (20); inch — xxx = x.xx, (075) SM = O.D. size: metric — xx = xx, (20); inch — xxx = x.xx, (075)
