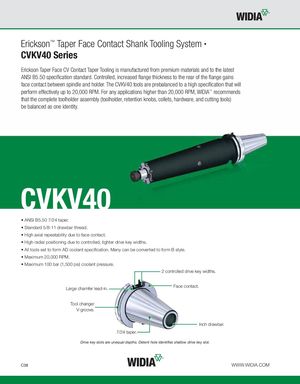

Erickson™ Taper Face Contact Shank Tooling System • CVKV40 Series Erickson Taper Face CV Contact Taper Tooling is manufactured from premium materials and to the latest ANSI B5.50 specification standard. Controlled, increased flange thickness to the rear of the flange gains face contact between spindle and holder. The CVKV40 tools are prebalanced to a high specification that will perform effectively up to 20,000 RPM. For any applications higher than 20,000 RPM, WIDIA™ recommends that the complete toolholder assembly (toolholder, retention knobs, collets, hardware, and cutting tools) be balanced as one identity. CVKV40 • ANSI B5.50 7/24 taper. • Standard 5/8-11 drawbar thread. • High axial repeatability due to face contact. • High radial positioning due to controlled, tighter drive key widths. • All tools set to form AD coolant specification. Many can be converted to form B style. • Maximum 20,000 RPM. • Maximum 100 bar (1,500 psi) coolant pressure. 2 controlled drive key widths. Large chamfer lead-in. Face contact. Tool changer V-groove. Inch drawbar. 7/24 taper. Drive key slots are unequal depths. Detent hole identifies shallow drive key slot. C38 WWW.WIDIA.COM
