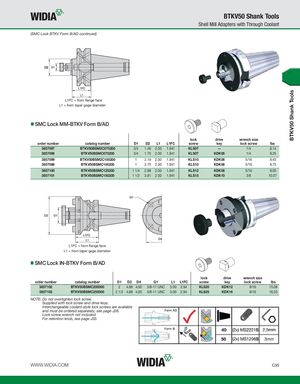

(SMC Lock BTKV Form B/AD continued)
L1FC = from flange face L1 = from taper gage diameter
SMC Lock MM-BTKV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L1FC | lock screw | drive key | wrench size lock screw | lbs |
| 3857097 | BTKV50BSM2C075200 | 3/4 | 1.46 | 2.00 | 1.941 | KLS07 | — | 1/4 | 8.14 |
| 3857096 | BTKV50BSMC075200 | 3/4 | 1.75 | 2.00 | 1.941 | KLS07 | KDK05 | 1/4 | 8.25 |
| 3857099 | BTKV50BSM2C100200 | 1 | 2.19 | 2.00 | 1.941 | KLS10 | KDK06 | 5/16 | 8.45 |
| 3857098 | BTKV50BSMC100200 | 1 | 2.75 | 2.00 | 1.941 | KLS10 | KDK06 | 5/16 | 8.75 |
| 3857100 | BTKV50BSMC125200 | 1 1/4 | 2.88 | 2.00 | 1.941 | KLS12 | KDK08 | 5/16 | 9.05 |
| 3857101 | BTKV50BSMC150200 | 1 1/2 | 3.81 | 2.00 | 1.941 | KLS15 | KDK10 | 3/8 | 10.07 |
L1FC = from flange face L1 = from taper gage diameter
SMC Lock IN-BTKV Form B/AD
| order number | catalog number | D1 | D2 | D4 | G1 | L1 | L1FC | lock screw | drive key | wrench size lock screw | lbs |
| 3857102 | BTKV50BSMC200300 | 2 | 4.88 | 4.00 | 5/8-11 UNC | 3.00 | 2.94 | KLS20 | KDK12 | 9/16 | 15.08 |
| 3857103 | BTKV50BSMC250300 | 2 1/2 | 4.88 | 4.00 | 5/8-11 UNC | 3.00 | 2.94 | KLS25 | KDK16 | 9/16 | 16.33 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knob, see page J33.
