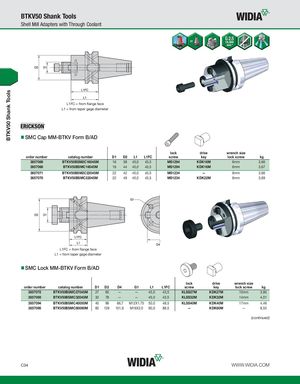

L1FC = from flange face L1 = from taper gage diameter
SMC Cap MM-BTKV Form B/AD
lock drive wrench size
| order number | catalog number | D1 | D2 | L1 | L1FC | screw | key | lock screw | kg | ||||
| 3857069 | BTKV50BSM2C16045M | 16 | 38 | 45,0 | 43,5 | MS1294 | KDK16M | 6mm | 3,66 | ||||
| 3857068 | BTKV50BSMC16045M | 16 | 44 | 45,0 | 43,5 | MS1294 | KDK16M | 6mm | 3,67 | ||||
| 3857071 | BTKV50BSM2C22045M | 22 | 42 | 45,0 | 43,5 | MS1234 | — | 8mm | 3,66 | ||||
| 3857070 | BTKV50BSMC22045M | 22 | 49 | 45,0 | 43,5 | MS1234 | KDK22M | 8mm | 3,69 |
L1FC = from flange face L1 = from taper gage diameter
SMC Lock MM-BTKV Form B/AD
| order number | catalog number | D1 | D2 | D4 | G1 | L1 | L1FC | lock screw | drive key | wrench size lock screw | kg |
| 3857072 | BTKV50BSMC27045M | 27 | 60 | — | — | 45,0 | 43,5 | KLSS27M | KDK27M | 10mm | 3,80 |
| 3857093 | BTKV50BSMC32045M | 32 | 78 | — | — | 45,0 | 43,5 | KLSS32M | KDK32M | 14mm | 4,01 |
| 3857094 | BTKV50BSMC40050M | 40 | 89 | 66,7 | M12X1.75 | 50,0 | 48,5 | KLSS40M | KDK40M | 17mm | 4,46 |
| 3857095 | BTKV50BSMC60090M | 60 | 129 | 101,6 | M16X2.0 | 90,0 | 88,5 | — | KDK60M | — | 8,55 |
(continued)
