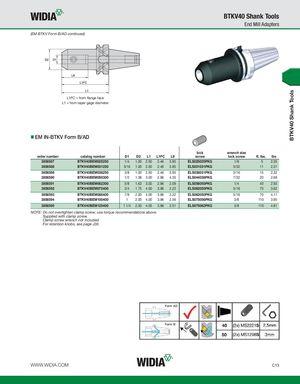

(EM BTKV Form B/AD continued)
L1FC = from flange face L1 = from taper gage diameter
EM IN-BTKV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L1FC | L9 | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 3856587 | BTKV40BEM025250 | 1/4 | 1.00 | 2.50 | 2.46 | 3.85 | ELS025025PKG | 1/8 | 5 | 2.35 |
| 3856588 | BTKV40BEM031250 | 5/16 | 1.00 | 2.50 | 2.46 | 3.85 | ELS031031PKG | 5/32 | 11 | 2.31 |
| 3856589 | BTKV40BEM038250 | 3/8 | 1.00 | 2.50 | 2.46 | 3.85 | ELS038031PKG | 3/16 | 15 | 2.32 |
| 3856590 | BTKV40BEM050300 | 1/2 | 1.38 | 3.00 | 2.96 | 4.35 | ELS044038PKG | 7/32 | 20 | 2.69 |
| 3856591 | BTKV40BEM062300 | 5/8 | 1.63 | 3.00 | 2.96 | 2.09 | ELS056050PKG | 1/4 | 40 | 2.93 |
| 3856592 | BTKV40BEM075400 | 3/4 | 1.75 | 4.00 | 3.96 | 2.22 | ELS062050PKG | 5/16 | 70 | 3.62 |
| 3856593 | BTKV40BEM088400 | 7/8 | 2.00 | 4.00 | 3.96 | 2.22 | ELS062050PKG | 5/16 | 70 | 4.11 |
| 3856594 | BTKV40BEM100400 | 1 | 2.00 | 4.00 | 3.96 | 2.56 | ELS075056PKG | 3/8 | 110 | 3.95 |
| 3856595 | BTKV40BEM125400 | 1 1/4 | 2.50 | 4.00 | 3.96 | 2.51 | ELS075062PKG | 3/8 | 110 | 4.81 |
NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. For retention knobs, see page J33.
