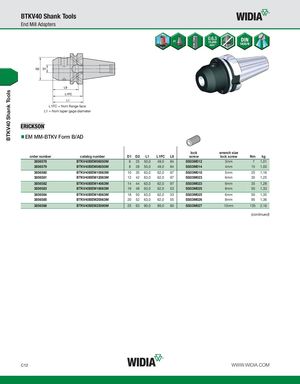

L1FC = from flange face L1 = from taper gage diameter
EM MM-BTKV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L1FC | L9 | lock screw | wrench size lock screw | Nm | kg |
| 3856578 | BTKV40BEM06050M | 6 | 25 | 50,0 | 49,0 | 84 | SS03M012 | 3mm | 7 | 1,01 |
| 3856579 | BTKV40BEM08050M | 8 | 28 | 50,0 | 49,0 | 84 | SS03M014 | 4mm | 15 | 1,03 |
| 3856580 | BTKV40BEM10063M | 10 | 35 | 63,0 | 62,0 | 97 | SS03M018 | 5mm | 25 | 1,16 |
| 3856581 | BTKV40BEM12063M | 12 | 42 | 63,0 | 62,0 | 97 | SS03M023 | 6mm | 35 | 1,25 |
| 3856582 | BTKV40BEM14063M | 14 | 44 | 63,0 | 62,0 | 97 | SS03M023 | 6mm | 35 | 1,28 |
| 3856583 | BTKV40BEM16063M | 16 | 48 | 63,0 | 62,0 | 53 | SS03M025 | 6mm | 50 | 1,33 |
| 3856584 | BTKV40BEM18063M | 18 | 50 | 63,0 | 62,0 | 53 | SS03M025 | 6mm | 50 | 1,35 |
| 3856585 | BTKV40BEM20063M | 20 | 52 | 63,0 | 62,0 | 55 | SS03M026 | 8mm | 95 | 1,36 |
| 3856586 | BTKV40BEM25090M | 25 | 63 | 90,0 | 89,0 | 60 | SS03M027 | 10mm | 135 | 2,16 |
(continued)
