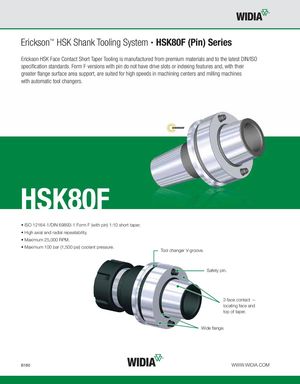

Erickson™ HSK Shank Tooling System HSK80F (Pin) Series

Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest DIN/ISO

specification standards. Form F versions with pin do not have drive slots or indexing features and, with their

greater flange surface area support, are suited for high speeds in machining centers and milling machines

with automatic tool changers.

HSK80F

• ISO 12164-1/DIN 69893-1 Form F (with pin) 1:10 short taper.
• High axial and radial repeatability.
• Maximum 25,000 RPM.
• Maximum 100 bar (1,500 psi) coolant pressure.

Tool changer V-groove.

Safety pin.

2-face contact — locating face and top of taper.

Wide flange.
