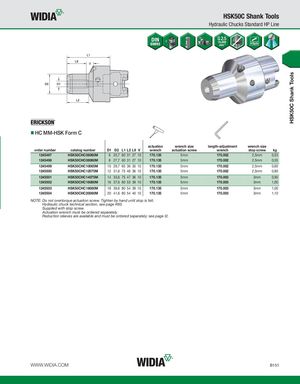

HC MM-HSK Form C
| order number | catalog number | D1 D2 L1 L2 L9 V | actuation wrench | wrench size actuation screw | length-adjustment wrench | wrench size stop screw | kg |
| 1245497 | HSK50CHC06060M | 6 25,7 60 31 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 0,53 |
| 1245498 | HSK50CHC08060M | 8 27,7 60 31 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 0,55 |
| 1245499 | HSK50CHC10065M | 10 29,7 65 36 30 10 | 170.135 | 5mm | 170.002 | 2,5mm | 0,60 |
| 1245500 | HSK50CHC12075M | 12 31,6 75 46 36 10 | 170.135 | 5mm | 170.002 | 2,5mm | 0,80 |
| 1245501 | HSK50CHC14075M | 14 33,6 75 47 36 10 | 170.135 | 5mm | 170.003 | 3mm | 0,90 |
| 1245502 | HSK50CHC16080M | 16 37,6 80 53 39 10 | 170.135 | 5mm | 170.003 | 3mm | 1,00 |
| 1245503 | HSK50CHC18080M | 18 39,6 80 54 39 10 | 170.135 | 5mm | 170.003 | 3mm | 1,00 |
| 1245504 | HSK50CHC20080M | 20 41,6 80 54 40 10 | 170.135 | 5mm | 170.003 | 3mm | 1,10 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2.
