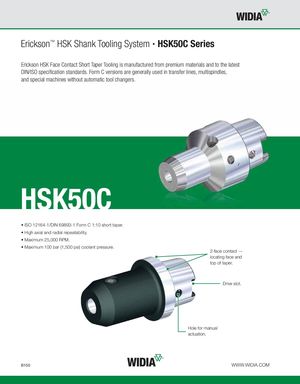

Erickson™ HSK Shank Tooling System HSK50C Series

Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest

DIN/ISO specification standards. Form C versions are generally used in transfer lines, multispindles, and special machines without automatic tool changers.

HSK50C

• ISO 12164-1/DIN 69893-1 Form C 1:10 short taper.
• High axial and radial repeatability.
• Maximum 25,000 RPM.
• Maximum 100 bar (1,500 psi) coolant pressure.

2-face contact — locating face and top of taper.

Drive slot.

Hole for manual actuation.
