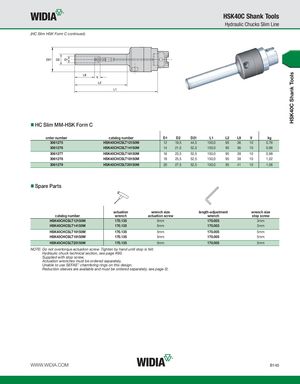

(HC Slim HSK Form C continued)
HC Slim MM-HSK Form C
| order number | catalog number | D1 | D2 | D21 | L1 | L2 | L9 | V | kg |
| 3061275 | HSK40CHCSLT12150M | 12 | 19,5 | 44,5 | 150,0 | 95 | 36 | 10 | 0,76 |
| 3061276 | HSK40CHCSLT14150M | 14 | 21,5 | 52,5 | 150,0 | 95 | 36 | 10 | 0,96 |
| 3061277 | HSK40CHCSLT16150M | 16 | 23,5 | 52,5 | 150,0 | 95 | 39 | 10 | 0,98 |
| 3061278 | HSK40CHCSLT18150M | 18 | 25,5 | 52,5 | 150,0 | 95 | 39 | 10 | 1,02 |
| 3061279 | HSK40CHCSLT20150M | 20 | 27,5 | 52,5 | 150,0 | 95 | 41 | 10 | 1,06 |
Spare Parts
| catalog number | actuation wrench | wrench size actuation screw | length-adjustment wrench | wrench size stop screw |
| HSK40CHCSLT12150M | 170.135 | 5mm | 170.003 | 3mm |
| HSK40CHCSLT14150M | 170.135 | 5mm | 170.003 | 3mm |
| HSK40CHCSLT16150M | 170.135 | 5mm | 170.005 | 5mm |
| HSK40CHCSLT18150M | 170.135 | 5mm | 170.005 | 5mm |
| HSK40CHCSLT20150M | 170.135 | 5mm | 170.005 | 5mm |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrenches must be ordered separately. Unable to use SEFAS™ chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2.
