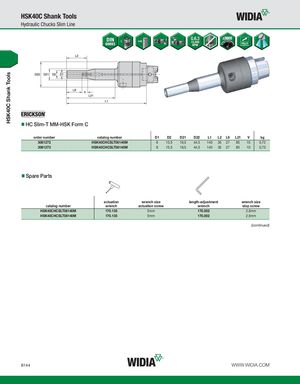

HSK40C Shank Tools HSK40C Shank Tools Hydraulic Chucks Slim Line HC Slim-T MM-HSK Form C order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V kg 3061272 HSK40CHCSLT06140M 6 13,5 19,5 44,5 140 35 27 85 10 0,72 3061273 HSK40CHCSLT08140M 8 15,5 19,5 44,5 140 35 27 85 10 0,73 Spare Parts actuation wrench size length-adjustment wrench size catalog number wrench actuation screw wrench stop screw HSK40CHCSLT06140M 170.135 5mm 170.002 2,5mm HSK40CHCSLT08140M 170.135 5mm 170.002 2,5mm (continued) B144 WWW.WIDIA.COM
