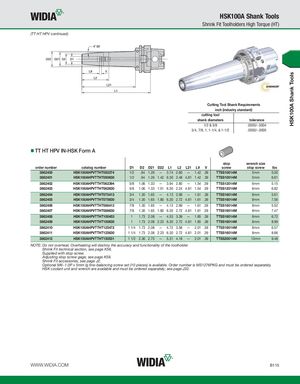

HSK100A Shank Tools HSK100A Shank Tools Shrink Fit Toolholders High Torque (HT) (TT HT HPV continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/2 & 5/8 .0000/-.0004 3/4, 7/8, 1, 1-1/4, & 1-1/2 .0000/-.0005 TT HT HPV IN-HSK Form A stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw lbs 3862400 HSK100AHPVTTHT050374 1/2 .94 1.26 — 3.74 2.60 — 1.42 .39 TTSS10014M 5mm 5.00 3862401 HSK100AHPVTTHT050630 1/2 .94 1.26 1.42 6.30 2.48 4.81 1.42 .39 TTSS10014M 5mm 6.61 3862402 HSK100AHPVTTHT062394 5/8 1.06 1.33 — 3.94 2.80 — 1.54 .39 TTSS12014M 6mm 5.15 3862403 HSK100AHPVTTHT062630 5/8 1.06 1.33 1.51 6.30 2.24 4.81 1.54 .39 TTSS12014M 6mm 6.82 3862404 HSK100AHPVTTHT075413 3/4 1.30 1.65 — 4.13 2.99 — 1.61 .39 TTSS16014M 8mm 5.61 3862405 HSK100AHPVTTHT075630 3/4 1.30 1.65 1.80 6.30 2.72 4.81 1.61 .39 TTSS16014M 8mm 7.56 3862406 HSK100AHPVTTHT088413 7/8 1.30 1.65 — 4.13 2.99 — 1.61 .39 TTSS16014M 8mm 5.52 3862407 HSK100AHPVTTHT088630 7/8 1.30 1.65 1.80 6.30 2.72 4.81 1.61 .39 TTSS16014M 8mm 7.47 3862408 HSK100AHPVTTHT100453 1 1.73 2.08 — 4.53 3.39 — 1.85 .39 TTSS16014M 8mm 6.72 3862409 HSK100AHPVTTHT100630 1 1.73 2.08 2.23 6.30 2.72 4.81 1.85 .39 TTSS16014M 8mm 8.99 3862410 HSK100AHPVTTHT125472 1 1/4 1.73 2.08 — 4.72 3.58 — 2.01 .39 TTSS16014M 8mm 6.57 3862411 HSK100AHPVTTHT125630 1 1/4 1.73 2.08 2.23 6.30 2.72 4.81 2.01 .39 TTSS16014M 8mm 8.66 3862412 HSK100AHPVTTHT150531 1 1/2 2.36 2.75 — 5.31 4.18 — 2.01 .39 TTSS20014M 10mm 9.48 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. Optional M6~1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B115
