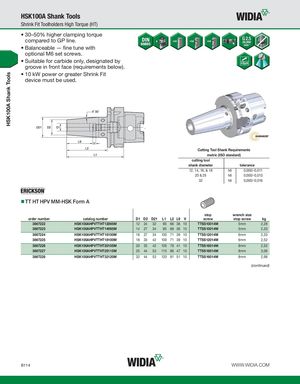

HSK100A Shank Tools HSK100A Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-HSK Form A stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3867222 HSK100AHPVTTHT12095M 12 24 32 95 66 36 10 TTSS10014M 5mm 2,28 3867223 HSK100AHPVTTHT14095M 14 27 34 95 66 36 10 TTSS10014M 5mm 2,33 3867224 HSK100AHPVTTHT16100M 16 27 34 100 71 39 10 TTSS12014M 6mm 2,33 3867225 HSK100AHPVTTHT18100M 18 33 42 100 71 39 10 TTSS12014M 6mm 2,52 3867226 HSK100AHPVTTHT20105M 20 33 42 105 76 41 10 TTSS16014M 8mm 2,53 3867227 HSK100AHPVTTHT25115M 25 44 53 115 86 47 10 TTSS16014M 8mm 3,06 3867228 HSK100AHPVTTHT32120M 32 44 53 120 91 51 10 TTSS16014M 8mm 2,98 (continued) B114 WWW.WIDIA.COM
