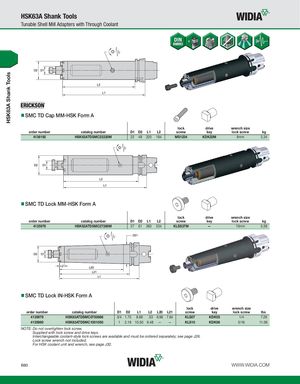

HSK63A Shank Tools HSK63A Shank Tools Tunable Shell Mill Adapters with Through Coolant SMC TD Cap MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 L2 screw key lock screw kg 4136192 HSK63ATDSMC22220M 22 49 220 194 MS1234 KDK22M 8mm 3,34 SMC TD Lock MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 L2 screw key lock screw kg 4135978 HSK63ATDSMC27260M 27 61 260 234 KLSS27M — 10mm 5,59 SMC TD Lock IN-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 L2 L20 L21 screw key lock screw lbs 4135979 HSK63ATDSMC0750866 3/4 1.75 8.66 .53 6.96 7.64 KLS07 KDK05 1/4 7.28 4135980 HSK63ATDSMC1001050 1 2.19 10.50 9.48 — — KLS10 KDK06 5/16 11.06 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. B80 WWW.WIDIA.COM
